183. TRI - CLS series
184. • Easy to set up.
185. • Highly accurate and precise.
186. • Low maintenance.
187. • Affordable, low-cost option.
192. Product introduction
193. 1. Description of ultrasonic label sensor CLS series:

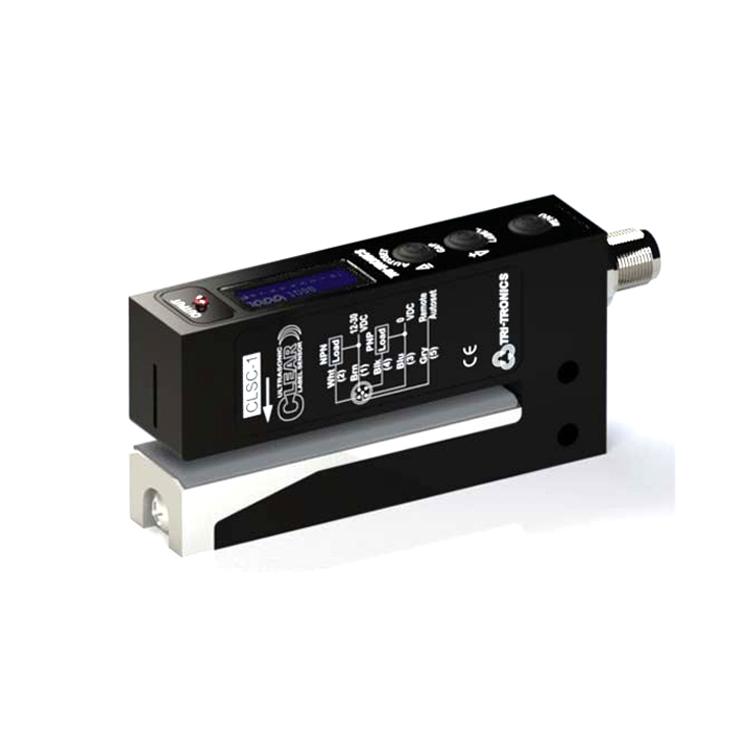

194. Ultrasonic195. Clear label sensor with OLED graphic display for monitoring sensor performance. Designed with all the ease-of-use features that make TRI sensors so famous in the industry.
196. Ultrasonic technology combined with digital signal processing makes it easy to detect clear and opaque labels on transparent or opaque background materials. The OLED graphic display replaces simple indicator lights, giving users unprecedented insight into sensor performance, selection, program modes, and useful simple instructions. The stainless steel removable cover and anodized aluminum housing make this sensor rugged and durable. Setup is fast with one-button label and one-button gap settings.
197. 2. Features of ultrasonic label sensor CLS series:
198. • OLED display
199. • 10-bar graphic contrast indicator.
200. • Static and dynamic digital display.
201. • One-button automatic setup (gap setting)
202. • Fine adjustment (instantaneous rise/fall adjustable)
203. • Timer and delay available.
204. • Cable and connector versions (M12 and M8)
205. • Removable plate for gap adjustment
206. • High speed (200µs) (1800' / 548m per minute)
207. • Rugged housing.
208. • Compatible with existing mounting configurations.
209. 3. Advantages of ultrasonic210. label sensor CLS series:
•211. Easy to set up.
•212. Highly accurate and precise.
213. • Low maintenance
187. • Affordable, low-cost option.
214. • Made in the USA
215. • Durable and reliable
216. 4. Applications of ultrasonic label sensor CLS series:
217. • Label rolls
218. • Label application
219. • Transparent, paper, foil, or polyester labels.
220. • Splice detection
221. • Fold or crease detection.
222. 5. Specifications of ultrasonic223. label sensor CLS series:
| 224. Supply voltage |
12-30 VDC 225. Polarity protection 226. Note: Use in Class 2 circuits. |
| 227. Digital output |
228. • (1) NPN and (1) PNP open collector outputs, 150mA max; <2V residual voltage 229. (Note: On CLSC-1M8, NPN & PNP are software selectable). 230. • All outputs are continuously short-circuit protected. |
| 231. Response time |
200µs |
| 232. Repeatability |
125µs |
| 233. Ambient temperature |
234. 4°C to 50°C (39°F to 122°F) |
| 235. Connector |
236. M12 5-Pin, M8 4-Pin, or 6' (1.8m) shielded cable. |

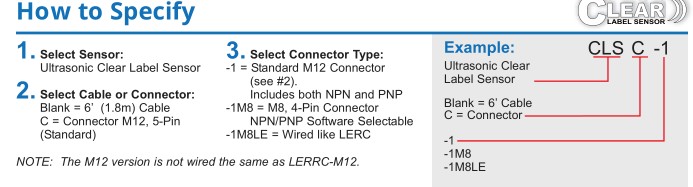

237. 6. Selection of ultrasonic238. label sensor CLS series:
