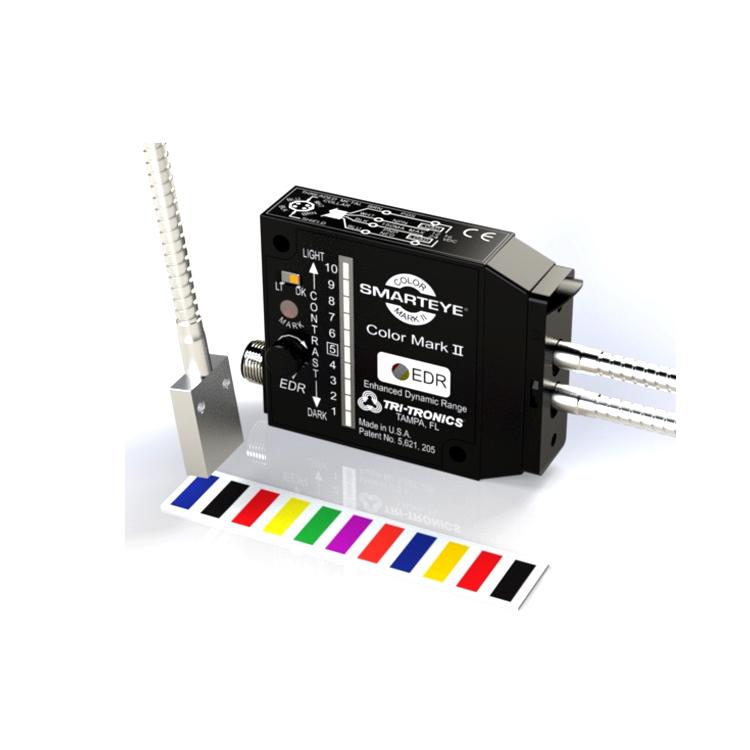

TRI - CMS Series

Output Transistor:

NPN and PNP output transistors.

NPN: Sink up to 150 mA.

PNP: Source up to 150 mA.

Instantaneous short-circuit protection:Output transistor turns 'ON' when the mark is in view.

Response Time:

Minimum duration of input event:

Light state response: 50 microseconds.

Dark state response: 140 microseconds.

Leading edge variation: less than 20 microseconds.

Hysteresis:

Greater sensitivity and resolution less than 400 mV.

LED Light Source

• Color selection:

A. White broadband spectrum (CMSWL)

B. Green - 550 nm (CMS)

C. Blue - 480 nm (CMSB)

D. Red - 660 nm (CMSR)

Light Immunity

• Pulse-modulated, providing extremely high immunity to ambient light pulse stretchers (optional)

• Provides output duration of at least 10 milliseconds.

Offset/EDR® Clutch Knob Adjustment

• Sets the contrast indicator to an initial level related to the mid-scale switch point of 5 functions as sensitivity adjustment.

• Enhanced Dynamic Range control circuit (EDR®) function to avoid the effects of glare.

Indicators

• Output indicator - Red LED illuminates when the output transistor is 'ON'.

• EDR indicator - Green intensity.

LED provides indication that the offset/EDR adjustment is fully lit within the dynamic operating range: operation near saturation.

Off: operation near maximum sensing range.

• Contrast indicator - Shows the level of returned contrast light (background vs. mark).

Robust Construction:

• Chemical-resistant, high-impact polycarbonate housing.

• Waterproof, rated: NEMA 4X, 6P, and IP67.

Epoxy encapsulated for mechanical strength.
