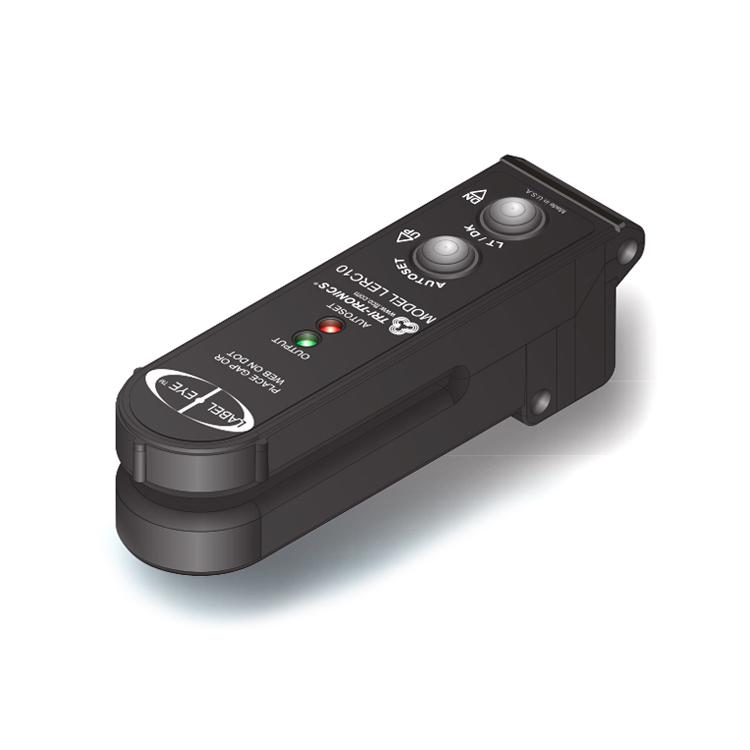

TRI - LERRC10-M12

1. Description of High-Speed Label Sensor LERRC10-M12:

The ultra-high-speed label 'eye' is specially designed to overcome common speed and accuracy issues in label application, counting, printing, and inspection. Designing a sensor accurate to 0.004 inches is no small feat. This American-designed and manufactured sensor is also an affordable product. It is the most economical solution and also a robust one.

If the application is printing a date code on a small white box on a label, or on a web, there is no simpler product at this speed and price. From start-up speed to the highest web speed, the ultra-high-speed label 'eye' will not miss a single label, nor will it adjust due to print offset/drift or inconsistent label landing; it is repeatable.

If the total cost of your current solution is lower than the ideal and expensive high-speed label sensor providing unreliable results, then applying the ultra-high-speed label 'eye' should provide worry-free, reliable, and high-level production accuracy requirements.

2. Features of High-Speed Label Sensor LERRC10-M12:

- 10 microsecond response time

- 5 microsecond repeatability

- One-button AUTOSET

- Tweak-able up/down adjustment

- M12, M8, or cable models

- Robust electrical and mechanical design

- Remote auto-set for M12 model

- Waterproof

3. Advantages of High-Speed Label Sensor LERRC10-M12:

Easy to set up

Highly accurate and precise

- Low maintenance

- Affordable, low-cost option

- Made in the USA

- Durable and reliable

4. Applications of High-Speed Label Sensor LERRC10-M12:

- Label rolls

- Label application

- Splice detection

- High-speed counting

- Perforation detection

- Weld detection

- Registration mark detection

5. Parameters of High-Speed Label Sensor LERRC10-M12:

Supply voltage	10-30 VDC Polarity protection
Output transistors	(1) NPN and (1) PNP output transistors. Sensor output can sink 150mA (current limited) All outputs are continuously short-circuit protected.
Response time	10 microsecond response time. 5 microsecond repeatability
LED light source	High-intensity red LED. Pulse modulation
Indicator lights	Green LED flashes when the auto-set procedure is activated and remains lit when auto-set is complete. Red LED lights when the sensor's output transistor is 'ON'.
Ambient temperature	-40°C-70°C (-40°F-158°F)
