Product Introduction

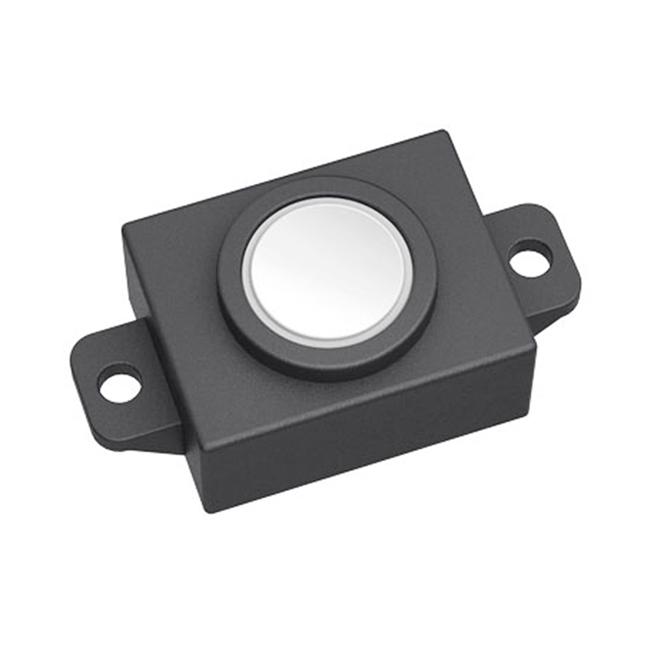

Ultrasonic Obstacle Avoidance Sensor Module UM0090 Description:
UM0090 is a distance measurement module based on an integrated transceiver ultrasonic sensor. By measuring the time of flight of ultrasonic waves from transmission to reception, this module can detect objects within 3 meters and output distance signals via UART interface.
This product features high sensitivity and fast response, as well as good anti-interference performance and stability, widely used in obstacle avoidance systems of various robots, drones, and smart devices.
Ultrasonic Obstacle Avoidance Sensor Module UM0090 Features:
Compact size for easy installation
Detection range up to 3 meters
Good anti-interference performance
Can detect objects of various colors, shapes, and materials
Ultrasonic Obstacle Avoidance Sensor Module UM0090Product Applications:
Robots
Smart streetlights
Smart trash bins
Unmanned vehicles
Ultrasonic Obstacle Avoidance Sensor Module UM0090Parameters:
| Basic Characteristics |
|
| Measurement Range |
17~300cm (target: flat surface) |
| Frequency |
58kHz |
| Measurement Resolution |
<1cm |
| Response Time |
<1ms |
| Electrical Delay |
≤1s |
| Blind Zone |
17cm |
| Output Format |
|
| Trigger Mode |
Low-level pulse, pulse width ≥50us |
| Output |
Serial port output distance (unit: cm) |
| Rated Operating Conditions |
|
| Operating Environment |
Indoor/Outdoor |
| Operating Temperature |
-40~+80 ℃ |
| Storage Temperature |
-40~+85 ℃ |
| Operating Humidity |
≤95% (non-condensing) |
| Power Supply |
|
| Supply Voltage |
DC 5V |
| Operating Current |
≤10mA |
