Product Introduction

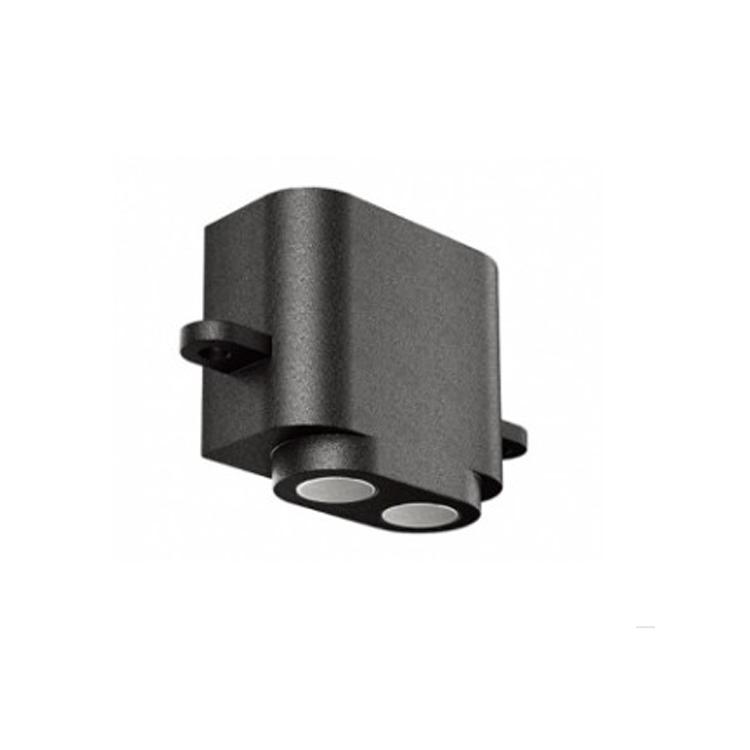

Ultrasonic Distance Measurement ModuleUM0034-002 Description:
UM0034-002 is a non-contact ultrasonic distance measurement module. By measuring the time of flight of ultrasonic waves from transmission to reception, this module can detect objects within a range of 1.2 meters and output distance signals through the UART interface.
Ultrasonic Distance Measurement Module UM0034-002Product Features:
Compact size for easy installation
Intelligent and accurate measurement
Small blind zone and high sensitivity
Good anti-interference performance
Ultrasonic Distance Measurement Module UM0034-002Product Applications:
Smart Trash Can
Smart Liquid Level Detection System
Smart Water Dispenser
Ultrasonic Distance Measurement Module UM0034-002Technical Parameters:
| NO. | Item |
Standard |
| 1 | Product Model | UM0034-002 |
| 2 | Measurement Range |
20~1200mm |
| 3 | Measurement Accuracy | ±10mm |
| 4 | Response Time | ＜1ms |
| 5 | Operating Voltage | DC 5V |
| 6 | Operating Current | ≤ 9mA |
| 7 | Operating Temperature | 0℃~+80℃ |
