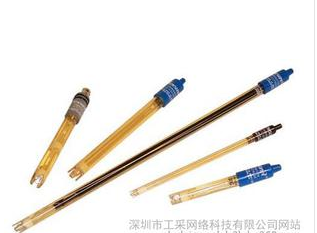

Water Quality Sensor (Plastic Body pH Electrode) - S150C\S200C
Electrode sizes can be selected in multiple options according to specific applications;
The housing material is high-strength epoxy resin, sturdy and durable;
All laboratory glass electrodes come with a soaking storage bottle, and the electrodes can be used directly;
Single junction and double junction are available;
Compatible with almost all pH instruments;
Product Introduction
Plastic Body pH Electrode
Models: S150C\S200C\S200CD\S100C\S300C\S223C\S223CD\S224C
Features：
1. Plastic material electrodes
Use sensorex® high-quality, universal electrodes to replace the original electrodes of handheld or benchtop pH meters. They are made of epoxy resin and feature a sturdy pH glass bulb. Multiple diameters, lengths, and shapes are suitable for various special needs. All laboratory plastic electrodes come with a soaking storage bottle, so the electrodes can be used immediately. Models: S200C (single junction), S200CD (double junction), etc.
2. Combination/separate electrodes
More than half of practical applications use combination electrodes, which have both pH measuring and reference units. We also provide separate pH electrodes and reference electrodes.
3. Sealed reference electrode - protects the measuring bulb
Sealed gel-filled reference electrodes are as good as refillable reference electrodes. All models have a protective skirt to protect the measuring bulb.
Glossary
Epoxy resin material: The electrode body is made of epoxy resin plastic, sturdy and reliable.
Combination electrode: Has both measuring and reference electrodes.
Gel-filled reference electrode: The reference electrode is sealed and filled with silver chloride gel, offering stability, reliability, and ease of use.
Versatility: Equipped with different connectors, it can be used with other pH meters on the market, such as Beckman (USA), Corning (USA), VWR (USA), Metrohm (Switzerland), Mettler (Switzerland), Radiometer (France), Hanna (Italy), etc.
Select the model you need
The most commonly used model is S200C, size 12mm x 150mm, very sturdy and reliable. The new low-cost S150C (PC material) is a cost-effective solution. The electrodes are almost interchangeable with any existing instrument on the market. By selecting the appropriate signal cable, connector, and electrode model, your application can be fully satisfied.
Main applications of plastic body pH electrodes:
Widely used in process technology and monitoring, papermaking, plastic chemical industry, calcination plants, water treatment, sewage, cooling water and other fields.
