4-20mA Turbidity Transmitter for Community Water Supply Tanks

I. Product Overview of the 4-20mA Turbidity Transmitter for Community Water Supply Tanks

This device is designed for secondary water supply scenarios such as community buildings, municipal pump rooms, and community water tanks.Integrated multi-parameter water quality online monitoring terminal. Can be paired withpH, turbidity, residual chlorine, dissolved oxygen, conductivity, temperature and other water quality sensors, achieving water quality2424-hour real-time monitoring, data upload, over-limit alarms, and equipment linkage, effectively solving problems such as delayed monitoring and difficult control of secondary water supply quality, suitable for smart water utility renovation and daily water supply safety supervision.

II. Complete Technical Parameter Table of the 4-20mA Turbidity Transmitter for Community Water Supply Tanks

Item	Detailed parameters
Display screen	7Inch high-definition screen, resolution1024*600
Power supply method and power consumption	9-24VDC, power consumption <8W；220VAC, power consumption <10W
Communication signal output	RS485*1channels (standardModbusprotocol);4-20mA*5channels analog output
Wireless transmission module	Built-in4GFull Netcom module, supporting remote upload, remote debugging, and over-limit push
Relay output	64 relay linkage outputs, can link pumps, valves, disinfection equipment and other peripherals
Body material	ABSEngineering material, anti-aging, anti-corrosion, and wear-resistant
工作温度	0℃～45℃
防护等级	IP65(dustproof, splash-proof, suitable for complex pump room conditions)
Overall dimensions	400*300*170mm(length*wide*deep)
Overall weight	3kg, lightweight wall-mounted installation

III. Hardware Function Introduction of the 4-20mA Turbidity Transmitter for Community Water Supply Tanks

1. High-definition display interface

Equipped with7Inch high-definition display screen, real-time display of various water quality parameters, operating status, historical curves, and alarm records, with intuitive interface and simple operation, supporting on-site parameter setting and calibration debugging.

2. Multiple signal interfaces, strong compatibility

Standard configuration1channelsRS485Interface, compatible with various digital water quality sensors;5channels4-20mAAnalog output, seamlessly connectable toPLC, industrial PCs, host computers and other automation systems. Paired with4GFull Netcom wireless transmission, free from wired limitations, enabling unattended remote monitoring, data upload, and abnormal push notifications.

3. Multi-channel relay intelligent linkage

Built-in64 independent relay outputs, with customizable water quality over-limit thresholds, automatically linking disinfection equipment, pumps, valves and other peripherals, achieving fully automatic closed-loop management and control of water quality monitoring and abnormal handling, greatly reducing manual operation and maintenance costs.

4. Industrial-grade durable design

Made of high-strengthABSbody, withIP65protection level, adaptable to humid and dusty pump room conditions,0℃～45℃Wide temperature stable operation, lightweight overall design, convenient wall-mounted installation, suitable for various secondary water supply station renovations and new projects.

IV. Adapted Monitoring Parameters

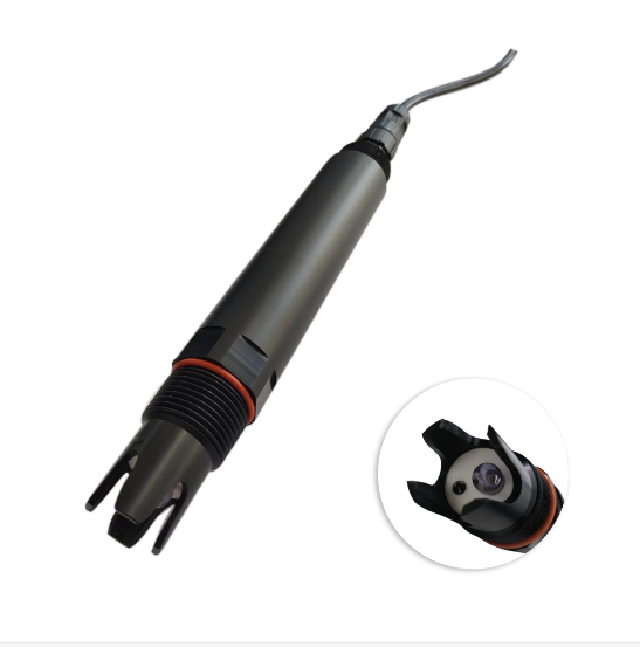

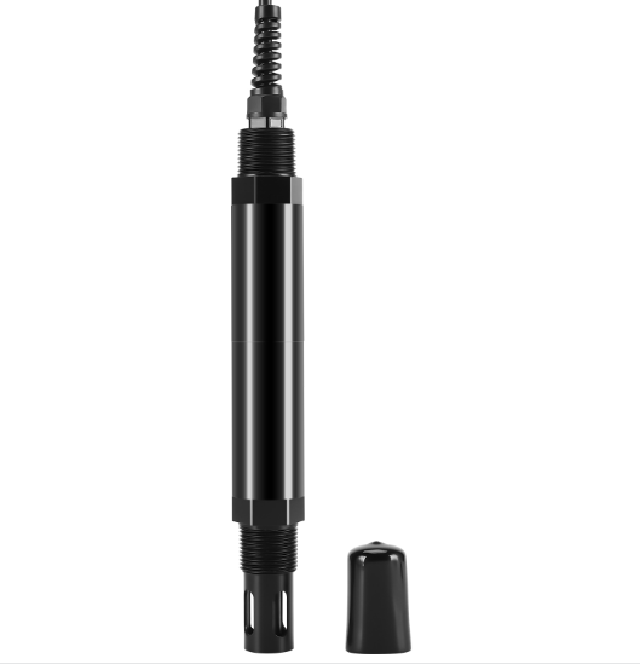

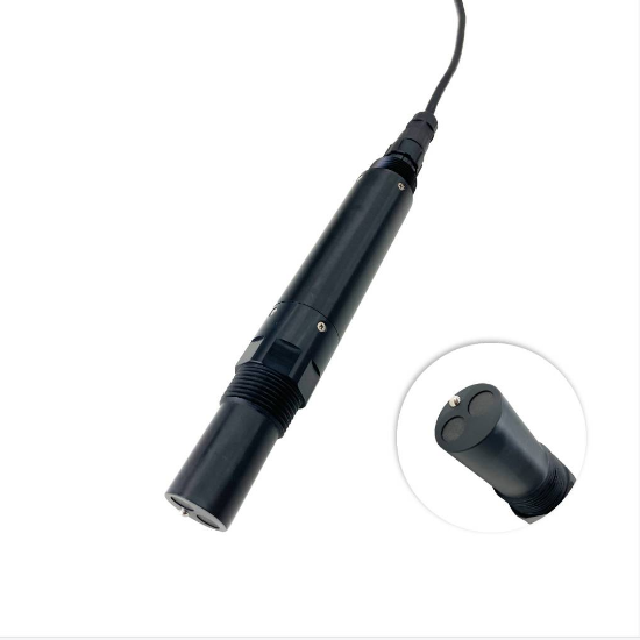

Can be flexibly matched with single/Multi-parameter sensor combination, meeting the full set of water quality monitoring needs for secondary water supply:pHpH, turbidity, residual chlorine, dissolved oxygenDO, conductivity/TDS, water temperature, and can also be equipped with a six-parameter integrated probe to achieve full indicator monitoring, with real-time data storage, queryable and traceable, meeting water utility acceptance standards.

V. Core Product Advantages

• Wide compatibility: dual power supply, multiple signal interfaces, suitable for renovation of old and new water projects and new construction, compatible with mainstream platforms and industrial control equipment.

• Intelligent fully automatic：4GRemote transmission+64 relay linkage outputs, achieving integrated intelligent management and control of monitoring, alarm, and equipment start/stop.

• Stable and durable: low power operation,IP65Industrial protection and anti-interference design, suitable for long-term uninterrupted online monitoring.

• Data compliance: real-time visual data, curve recording, over-limit alarms, complete and traceable data, meeting regulatory acceptance requirements.

VI. Applicable Scenarios

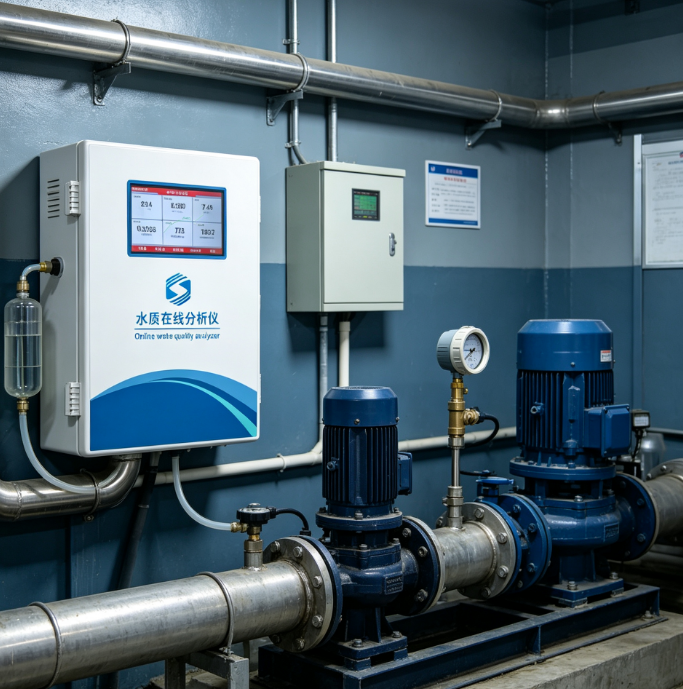

Suitable for scenarios such as urban community secondary water supply, high-rise building water supply, municipal pump rooms, community storage tanks, pipe network end water quality monitoring, industrial park water supply, and old water system renovation. It is the core supporting equipment for smart secondary water supply safety monitoring.
