Japan FIGARO Anti-CO2 Interference Oxygen Sensor (O2 Sensor) - SK-25
* Almost unaffected by CO2, CO, H2S, NO, H2
* Has temperature compensation circuit
* Good linear output
* Not affected by orientation
* Stable signal output
* Sensor operates without external power
* No preheating required
Product Introduction
1. Description of Anti-CO2 Interference Oxygen Sensor SK-25
2. Features of Anti-CO2 Interference Oxygen Sensor SK-25:
* Almost unaffected by CO2, CO, H2S, NO, H2
* Has temperature compensation circuit
* Good linear output
* Not restricted by location
* Stable signal output
* Sensor operates without external power
* No preheating required
3. Applications of Anti-CO2 Interference Oxygen Sensor SK-25:
* Safety field - Oxygen monitor
* Environmental control - Combustion gas monitoring
* Food industry - Refrigeration, greenhouses
* Education - Scientific experiment instruments
4. Parameters of Anti-CO2 Interference Oxygen Sensor SK-25:
| Model | SK-25 |
| Detection Range | 0~30% O2 |
| Accuracy | ±1% Full Scale |
| Operating Atmospheric Pressure | 1013hPa ± 20% |
| Operating Temperature | -10˚C~50˚C |
| Operating Relative Humidity | 0~99%RH (No condensation) |
| Response Time (90%) | ≤ 15 seconds |
| Initial Output Voltage | 5.5~8.5mV |
| Factory Test Atmospheric Pressure | 1013 hPa |
| Factory Test Temperature | 25˚C±5˚C |
| Expected Life in Normal Air at 20˚C | Approximately 3 years |
Note 1: If calibrated with 0% and 30% oxygen concentrations, the accuracy of SK-25 full scale is ±1% when the measurement range is 0-30% oxygen content.
Note 2: To meet the response speed specified in Table 1, the sensor should be used under conditions with air exchange rate greater than 200-300 ml/min.
Note 3: The expected life in normal air at 20˚C (1013 hPa / 20.7% O2) is defined as the time when the sensor output value drops to 60% of its original value.

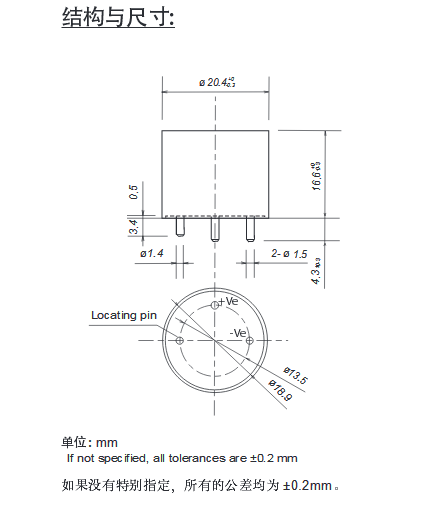

5. Structure and Dimensions of Anti-CO2 Interference Oxygen Sensor SK-25:
