Product Introduction
AG-2 module with Figaro TGS26 series sensor reference documentationDescription:

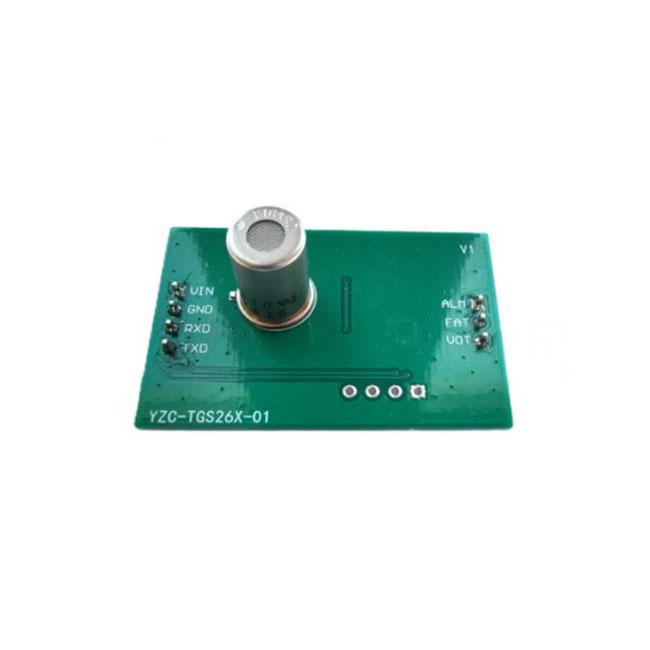

The AG-2-GSB-M26XX sensor module consists of a semiconductor sensor and a data acquisition and processing board. By configuring different sensor models, it can detect concentrations of CH4, C3H8, H2 and other gases in the environment. The module uses Figaro TGS26 series sensors as sensing elements, and detects gas concentration under the control of the sampling circuit. The module is pre-calibrated before leaving the factory, offering good stability and selectivity. The module has a built-in temperature sensor, and data correction can be performed through software algorithms to reduce the impact of environmental changes on measurement results. The module communicates digitally with the receiving terminal, outputting gas concentration signals via UART bus, making it easy for users to quickly form systems in various applications in a simple way. It is suitable for gas detection in civil and industrial fields.
AG-2 module with Figaro TGS26 series sensor reference documentationParameters:
| Model |
AG-2-GSB-M26XX |
| Detected Gas |
CH4, C3H8, H2 and other gases |
| Detection Principle |
Semiconductor |
| Range |
See sensor datasheet for details |
| Resolution |
See sensor datasheet for details |
| Measurement Error |
<±5%FS |
| Operating Voltage |
DC5V±0.1V |
| Operating Current |
Depends on sensor power consumption |
| Output Method |
UART (+3.3V TTL level) |
| Operating Temperature |
-10℃ ~ +55℃ |
| Operating Humidity |
0% ~ 90%RH (non-condensing) |
| Operating Pressure |
1 ± 0.1 atm |
| Storage Temperature |
10℃ ~ +40℃ |
| Dimensions |
L*W*H=41mm*27mm*22mm (TGS2610-D sensor) |
