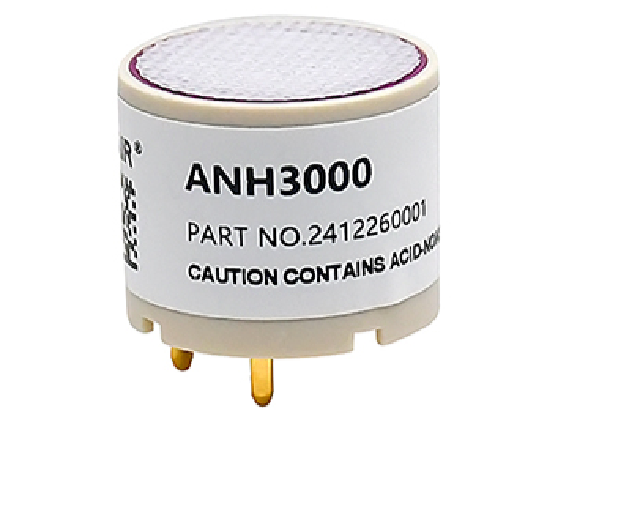

ANH3000 Ammonia Gas Sensor - ANH3000
| Parameter | Value |
|---|---|
| Product Model | AMTANH3000 |
| Measurement Range | 0~100ppm |
| Upper measurement limit | 200ppm |
| Sensitivity | 40±12nA/ppm |
| Response time T₉₀ | ≤90s |
| Baseline (20°C) | <±10ppm |
| Repeatability | ≤10% |
| Long-term output drift | <±2%/month |
| Zero Drift | <±10ppm/year |
| Expected life | 24 months |
| Temperature dependence | <±15ppm |
| 分辨率 | <1ppm |
| Recommended load resistor | 10Ω |
Product Model: ANH3000
Product Introduction
AMTANH3000 is a three-electrode electrochemical ammonia gas sensor that determines ammonia concentration by measuring the magnitude of the redox current between electrodes. This sensor features fast response and stable output signal, and can directly replace similar three-electrode ammonia gas sensors on the market, providing customers with a high-quality and low-cost ammonia detection solution.
Main Application Areas
- Industrial Safety — Ammonia leak detection in chemical plants, refrigeration systems, and fertilizer production facilities.
- Environmental Monitoring — Continuous monitoring of ammonia emissions in air quality control and livestock farming environments.
- Laboratory Research — Precise ammonia concentration measurement in chemical and biological research applications.
- HVAC Systems — Ammonia detection in industrial refrigeration and ventilation systems to ensure safety.
Keywords：ammonia gas sensor, NH3 sensor, electrochemical ammonia sensor, industrial ammonia detector, 0-100ppm ammonia sensor, ammonia gas detector, NH3 gas sensor, ammonia monitoring sensor
