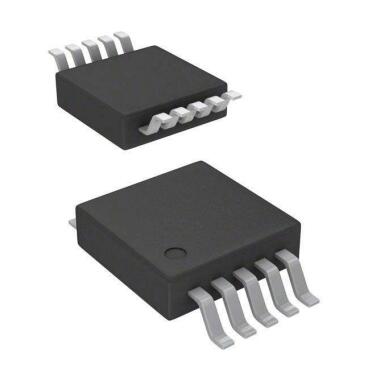

Clock Generator Chip - MS5351M
3-channel output from 2.5kHz to 200MHz clock
Output frequency error 0ppm
High resolution, low output jitter
Operates with 25MHz or 27MHz crystal
Output clock phase adjustable
Output delay adjustable
Output clock rise/fall time controllable
Glitch-free frequency switching
Independent power supply pins
- Internal core power VDD: 2.5V or 3.3V
- Output stage power VDDO: 1.8V, 2.5V, or 3.3V
High internal power supply rejection ratio
Compatible with HCSL and PCIe Gen 1
Product Introduction
Clock Generator Chip - MS5351Mis a universal frequency synthesizer chip that, throughI2Cconfiguration, can generatefrom2.5kHzto200MHzany clock output. It can replace crystals, crystal oscillators,phase-locked loops, and output buffers.
I. Features of Clock Generator Chip MS5351M:
3-channel output from 2.5kHz to 200MHz clock
Output frequency error 0ppm
High resolution, low output jitter
Operates with 25MHz or 27MHz crystal
Output clock phase adjustable
Output delay adjustable
Output clock rise/fall time controllable
Glitch-free frequency switching
Independent power supply pins
- Internal core power VDD: 2.5V or 3.3V
- Output stage power VDDO: 1.8V, 2.5V, or 3.3V
High internal power supply rejection ratio
Compatible with HCSL and PCIe Gen 1
II. Applications of Clock Generator Chip MS5351M：
