UV Absorption COD Sensor - AMT-COD300
Measurement principle: Dual-wavelength ultraviolet absorption method
Measurement accuracy: +5% F.S
Resolution: 0.1mg/L
Calibration method: Two-point calibration
Signal output: RS-485 (Modbus/RTU)
Measurement range: 0-500mg/L
Product Introduction
COD-water-quality-sensor-01

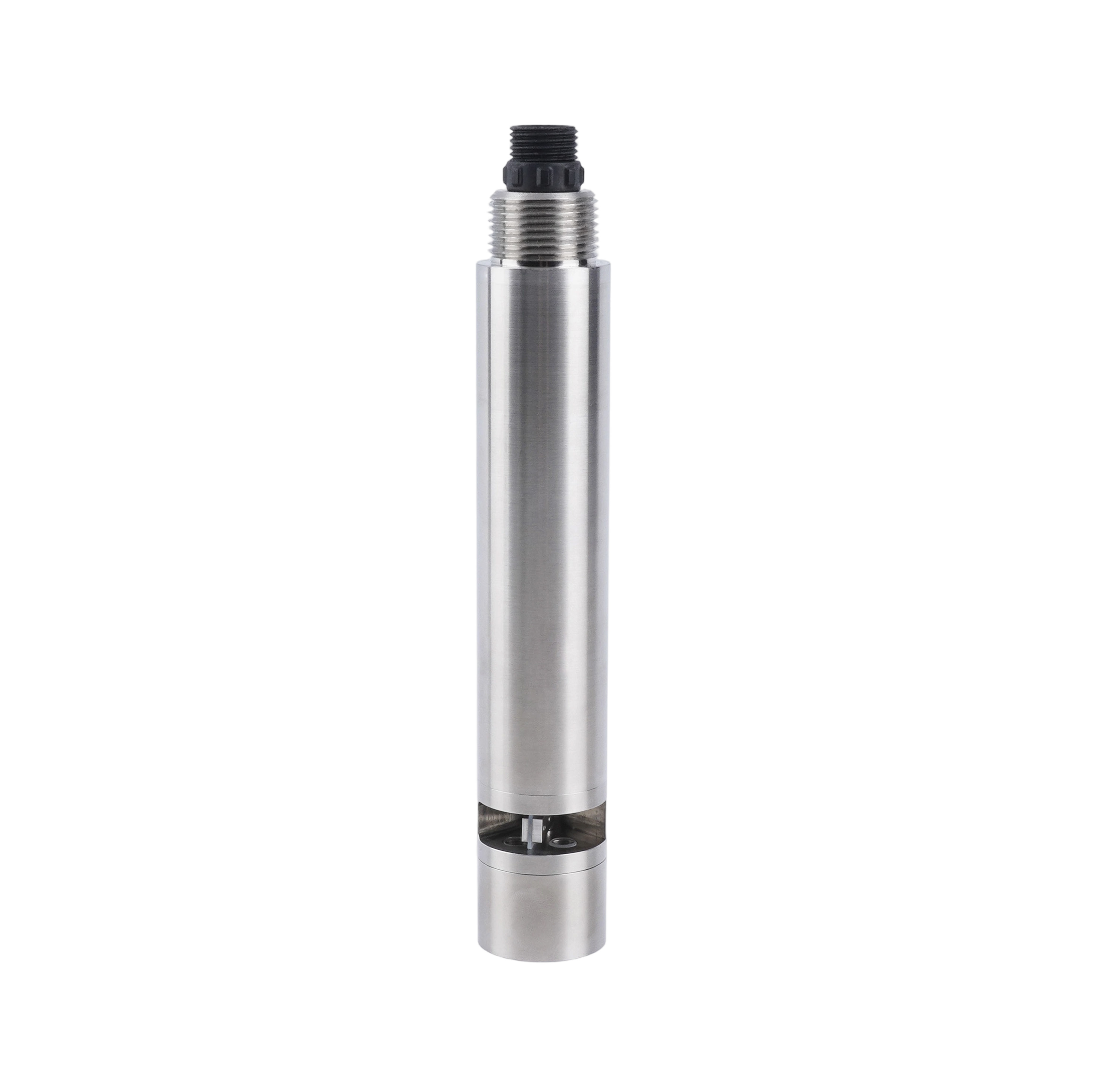

AMT-COD300
Based on ultraviolet absorption method to analyze COD, turbidity, temperature and other parameters in water. Organic pollutants mainly absorb in the ultraviolet and visible bands. By scanning and analyzing the absorption spectrum of the 254nm ultraviolet-visible band, combined with chemical modeling algorithms, qualitative and quantitative analysis can be performed

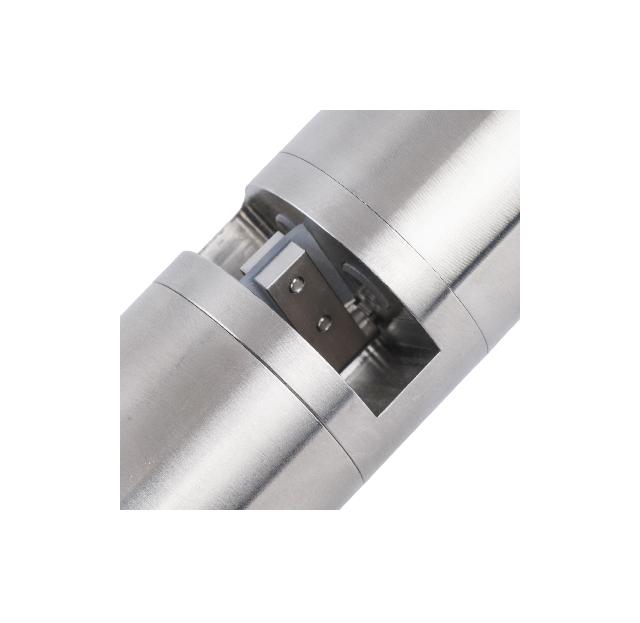

Analyze various pollutants, especially suitable for judging changes in water quality composition or concentration. The sensor consists of a light source, spectral analysis, measurement optical path, etc. The light emitted by the light source is split into
Two beams. One beam is the measurement light, which undergoes spectral analysis after being absorbed by the water sample to be tested; the other beam is the reference light, which undergoes spectral analysis directly without passing through the water sample. By measuring the spectral characteristics of the two beams separately, the concentration of each pollutant in the water sample can be calculated.
Measurement principle: Dual-wavelength ultraviolet absorption method
Measurement accuracy: +5% F.S
Resolution: 0.1mg/L
Calibration method: Two-point calibration
Signal output: RS-485 (Modbus/RTU)
Measurement range: 0-500mg/L
Operating conditions:
Storage temperature: -5-65°C
Protection rating: IP68
Installation: Immersion type
Cable length: 5 meters
Dimensions: D32mm, L185mm
Main Application Areas
- Wastewater Treatment — Monitor COD levels in influent and effluent to ensure treatment efficiency and compliance with discharge standards.
- Environmental Monitoring — Assess organic pollution in rivers, lakes, and other natural water bodies for environmental protection.
- Industrial Process Control — Real-time monitoring of COD in industrial wastewater to optimize treatment processes and reduce pollution.
