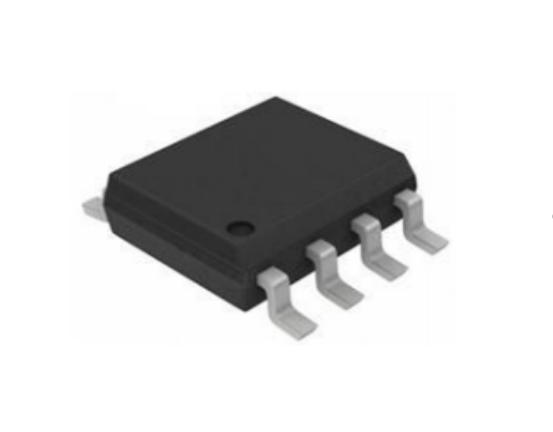

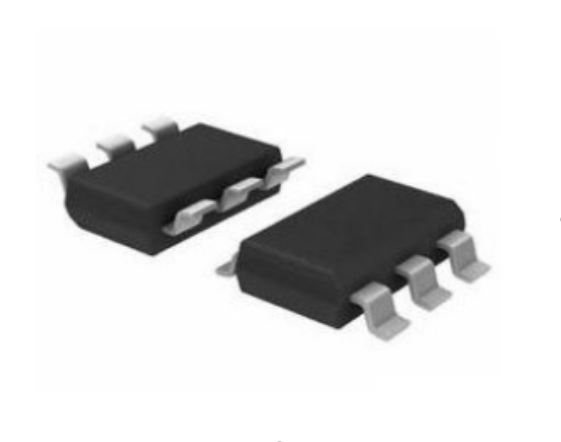

DC Motor Driver Chip - MS3010

The MS3010 is a low-voltage 5V DC motor driver chip, providing an integrated motor drive solution for cameras,consumer products, toys, and other low-voltage or battery-powered motion controlapplications.The MS3010 can provide an output current of up to 0.8A. It can operate ata supply voltage of 1.2~6V.The MS3010 has a PWM (IN/IN) input interface, compatible with industry-standard devices,and features over-temperature protection.



1. Features of DC Motor Driver Chip MS3010:

H-Bridge Motor Driver
-- Drives DC motors or other loads
-- Low on-resistance (HS+LS) 850mΩ
0.8A drive current
Supply voltage 1.2~6V
Interface type
-- PWM (IN1/IN2) input mode
Over-temperature protection
Low-current sleep mode (entered when IN1=IN2=0)



2. Applications of DC Motor Driver Chip MS3010:

Cameras

Digital Single-Lens Reflex (DSLR) lenses

Consumer products

Toys

Robotics

Medical devices
