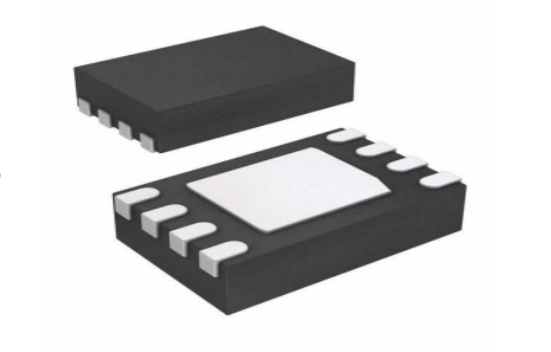

DC motor driver chip - MS31001D
H-bridge motor driver
-- Drive DC motors or other loads
-- Low on-resistance (HS+LS) 1.1Ω
0.8A drive current
Power supply voltage 2.0~5.5V
Interface PWM (IN1/IN2) input mode
Over-temperature protection
Current-limiting hold mode, current level adjustable via external pins
Low-current sleep mode (entered when IN1=IN2=0)
Product Introduction
MS31001Is a low-voltage5VDC motor driver chip, for cameras,Consumer products, toys, and other low-voltage or battery-powered motion control applicationsProvides an integrated motor drive solution.MS31001 Can provide up to0.8AThe output current. Can operate at2.0~5.5V on a supply voltage of.MS31001hasPWM（IN1/IN2) input interface,with industry-standard devicesand includes over-temperature protection.MS31001 Provides current-limiting hold mode with adjustable current limit.
I. Features of DC motor driver chip MS31001D:
H-bridge motor driver
-- Drive DC motors or other loads
-- Low on-resistance (HS+LS) 1.1Ω
0.8A drive current
Power supply voltage 2.0~5.5V
Interface PWM (IN1/IN2) input mode
Over-temperature protection
Current-limiting hold mode, current level adjustable via external pins
Low-current sleep mode (entered when IN1=IN2=0)
II. Applications of the DC motor driver chip MS31001D:
