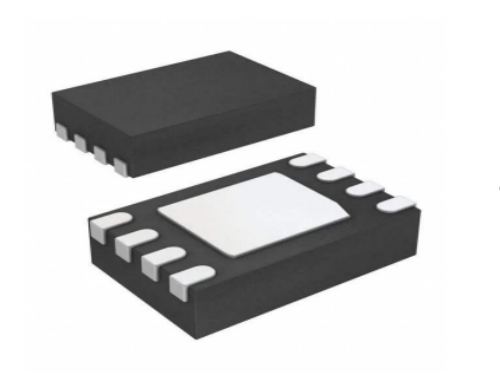

DC motor driver chip - MS31011D
H-bridge motor driver
-- Drive DC motors or other loads
-- Low on-resistance (HS+LS) 1.1Ω
0.8A drive current
Supply voltage 2.0~5.5V
Interface PWM (IN1/IN2) input mode
Over-temperature protection
Overcurrent protection, adjustable current
Low-current sleep mode (entered when IN1=IN2=0)
FG overcurrent detection output
Product Introduction
MS31011Is a low-voltage5VDC motor driver chip, for cameras, consumerProvides integrated motor drive solutions for consumer products, toys, and other low-voltage or battery-powered motion control applications.Provides an integrated motor drive solution.MS31011Can provide up to0.8AThe output current. Can operate at2.0~5.5Von a supply voltage of.MS31011hasPWM（IN1/IN2) input interface,Compatible with industry standard devicesand has over-temperature protection function.MS31011Has overcurrent protection function, and the current limit is adjustable; the chip containsHas an abnormal output pin, serving as the overcurrent detection output.
I. Characteristics of the DC motor driver chip MS31011D:
H-bridge motor driver
-- Drive DC motors or other loads
-- Low on-resistance (HS+LS) 1.1Ω
0.8A drive current
Supply voltage 2.0~5.5V
Interface PWM (IN1/IN2) input mode
Over-temperature protection
Overcurrent protection, adjustable current
Low-current sleep mode (entered when IN1=IN2=0)
FG overcurrent detection output
II. Applications of the DC motor driver chip MS31001D:
