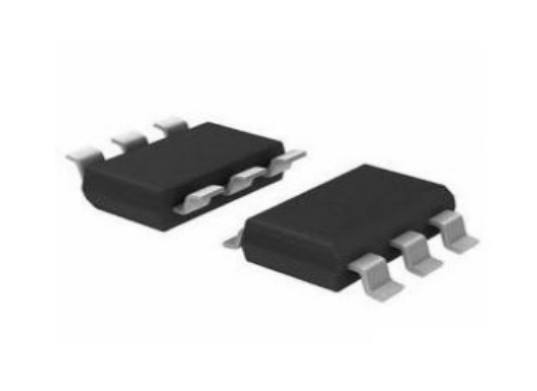

DC Motor Driver Chip - MS31051S/D
H-Bridge Motor Driver
-- Drives DC motors or other loads
-- Low on-resistance (HS+LS) 480mΩ
1.2A drive current
Supply voltage 1.8~6V
Interface PWM (IN1/IN2) input mode
Over-temperature protection
Low-current sleep mode (entered when IN1=IN2=0)
Product Introduction
MS31051S/Dis a low-voltage5VDC motor driver chip, providing an integrated motor drive solution for cameras,consumer products, toys, and other low-voltage or battery-powered motion controlapplications.MS31051S/DCan provide up to1.2Aoutput current. It can operate at1.8~6Vsupply voltage.MS31051S/DHasPWM（IN1/IN2) input interface,Compatible with industry-standardcomponents, and features over-temperature protection.
1. Features of DC Motor Driver Chip MS31051S/D:
H-Bridge Motor Driver
-- Drives DC motors or other loads
-- Low on-resistance (HS+LS) 480mΩ
1.2A drive current
Supply voltage 1.8~6V
Interface PWM (IN1/IN2) input mode
Over-temperature protection
Low-current sleep mode (entered when IN1=IN2=0)
2. Applications of DC Motor Driver Chip MS31051S/D:
