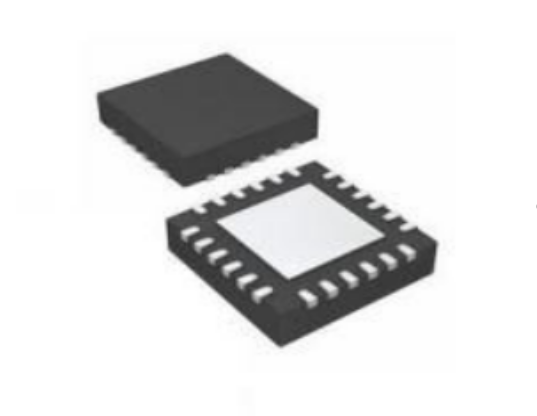

DC motor driver chip - MS3114

Four-channel H-bridge motor driver
-- Drive DC motors or other loads
-- Low on-resistance (HS+LS) 850mΩ
0.8A higher drive current
Power supply voltage 1.8~6V
Interface type
-- PWM (IN1/IN2) input mode
Over-temperature protection
Power-saving mode

Product Model: MS3114

Inquiry

shareShare to

Product Introduction

The MS3114 is a four-channel low-voltage 5V full-bridge driver chip, designed for camerascameras, consumer products, toys, and other low-voltage or battery-powered motion controland other motion control applications.The MS3114 can provide an output current of up to 0.8A. It can operate atOperating at a power supply voltage of 1.8~6V.The MS3114 features a PWM (IN1/IN2) input interface, compatible with industry-standard devicesand includes over-temperature protection.The MS3114 features a power-saving mode.

1. Features of the DC motor driver chip MS3114:

Four-channel H-bridge motor driver
-- Drive DC motors or other loads
-- Low on-resistance (HS+LS) 850mΩ
0.8A relativelyHigh drive current
Power supply voltage 1.8~6V
Interface type
-- PWM (IN1/IN2) input mode
Over-temperature protection
Power-saving mode

2. Applications of the DC motor driver chip MS3114:

Camera

Digital single-lens reflex (DSLR) lenses

Consumer products

Toys

Robotics

Medical equipment
