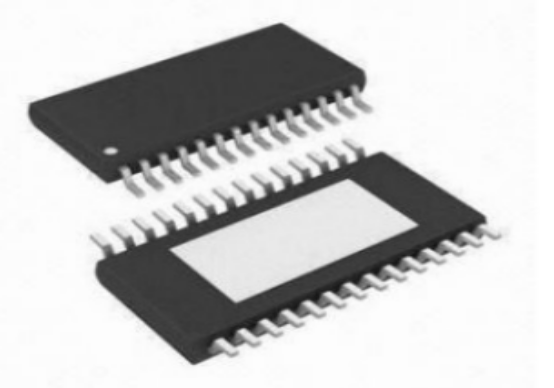

DC Motor Driver Chip - MS8847
Dual H-Bridge Driver
Low-side current sensing pins
Low on-resistance power transistors
2.5A large peak current at 24V, 25°C
Built-in comparator
Built-in 3.3V 10mA low dropout regulator (LDO)
8-36V power supply voltage range
Surface-mount package with heat sink
Product Introduction
MS8847is a dualHbridge driver circuit. Suitable for home appliances and othermechatronic applications. This device can be used to drive a stepper motor or other loads.Each output driver channel containsHbridge-configuredNchannel powerMOSFET. This design connects the ground terminal of each driver to a pin forcurrent sensing.A built-in general-purpose comparator can be used for current limiting circuits or other functionalcircuits.MS8847Each channel provides up to2.5Apeak current or1.75ARMSoutput current.The chip has overcurrent protection, short-circuit protection, undervoltage protection, and over-temperature protectionfunctions.
1. Features of DC Motor Driver Chip MS8847:
Dual H-bridge driver
Low-side current sensing pins
Low on-resistance power transistors
2.5A at 24V, 25°Clargepeak current
Built-in comparator
Built-in 3.3V 10mA low dropout regulator (LDO)
8-36V power supply voltage range
Surface-mount package with heat sink
2. Applications of DC Motor Driver Chip MS8847:
