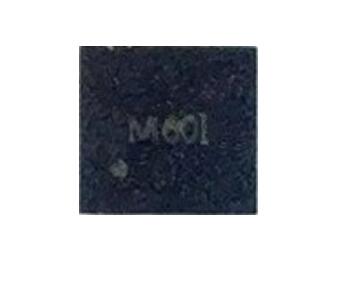

Digital temperature sensor chips M601B, M1601B, M1820B

Digital temperature sensor chip - M601B, M1601B, M1820B

Temperature measurement accuracy: ±0.5°C (maximum) (0°C to +50°C)
Temperature measurement range: -70°C ~ +150°C
Low power consumption: typical standby current 0.1µA@3.3V, peak temperature measurement
Value current 0.45mA@3.3V, average temperature measurement current 5.2μA (@3.3V, 1s cycle)
Wide operating voltage range: 1.8V-5.5V
Temperature sensing resolution: 16-bit output, maximum resolution 0.004°C
Temperature conversion time configurable: 10.5ms/5.5ms/4ms
Configurable single/periodic measurement
User-configurable temperature alarm
32-bit additional E2PROM space for storing user information
Each chip has a 64-bit ID serial number, facilitating multi-point networking and addressing
Standard single-bus interface

Product Model: M601B、M1601B、M1820B

Inquiry

shareShare to

Product Introduction

Digital temperature sensor chip - M601B, M1601B, M1820BSeries isDigitalAnalog mixed-signal temperature sensor chip,relativelyMaximum temperature measurement accuracy of 0°CIn the range up to 50°C ±0.5°C, no user calibration required.The temperature sensing principle of the temperature chip is based on the relationship between CMOS semiconductor PN junction temperature andThe characteristic relationship of bandgap voltage, after small-signal amplification, analog-to-digital conversion,Digital calibration and compensation, then digital bus output, with high accuracy, goodGood consistency, fast temperature measurement, low power consumption, flexible programmable configuration, longLong lifespan, etc.

The temperature chip has a built-in 16-bit ADC with a resolution of 0.004°C andUltra-wide operating range from -70°C to +150°C. The chip has a unique 64-Unique ID serial number, 100% tested and calibrated before leaving the factory, withCalibration coefficient fitting based on temperature error characteristics, with internal self-Automatic compensation calculation. To simplify system application, the chip's ID searchSearch, temperature data memory access, function configuration, etc., are all based on digital singleBus protocol commands, the host microprocessor only needs one GPIOPort for read and write access. The single-bus communication interface sharesA single data bus to achieve low-cost multi-node sensor acquisition and networkingThis solution has long transmission distance, supports many nodes, and facilitates spatial distributionDistributed sensor networking.relativelySupports up to 100 nodes, 100 to 500Meter-long temperature measurement node serial networking.

Built-in non-volatile E2PROM storage unit for saving chipID number, high and low temperature alarm thresholds, temperature calibration correction values, and userUser-defined information, such as sensor node number, location information, etc.M601B also has an ALERT alarm indication pin for user expansionHardware alarm applications.

I. Characteristics of digital temperature sensor chips - M601B, M1601B, M1820B:

Temperature measurement accuracy: ±0.5°C (relativelyLarge) (0°C to +50°C)
Temperature measurement range: -70°C ~ +150°C
Low power consumption: typical standby current 0.1µA@3.3V, peak temperature measurement
Value current 0.45mA@3.3V, average temperature measurement current 5.2μA (@3.3V, 1s cycle)
Wide operating voltage range: 1.8V-5.5V
Temperature sensing resolution: 16-bit output,relativelyHigh resolution 0.004°C
Temperature conversion time configurable: 10.5ms/5.5ms/4ms
Configurable single/periodic measurement
User-configurable temperature alarm
32-bit additional E2PROM space for storing user information
Each chip has a 64-bit ID serial number, facilitating multi-point networking and addressing
Standard single-bus interface

II. Digital temperature sensor chips - M601B, M1601B, M1820BApplications：

Board-level temperature monitoring

Industrial and agricultural environmental temperature

Smart home appliances

Smart home

Consumer electronics

Cold chain transportation and warehousing

Temperature measurement instruments and meters

Multi-point serial temperature measurement
