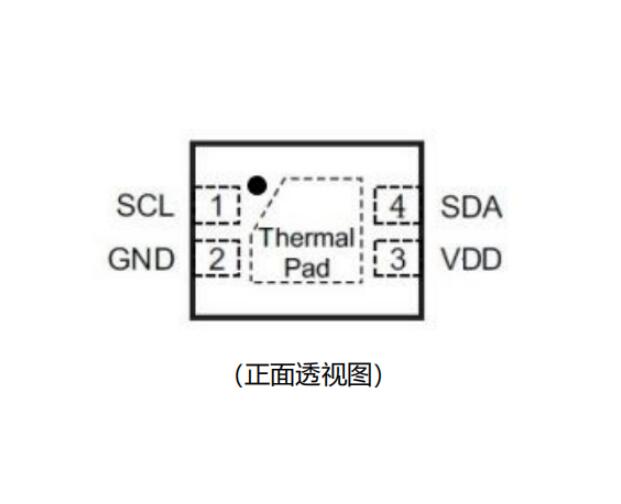

Digital Temperature Sensor Chip - MTS4
High temperature measurement accuracy: ±0.1°C/±0.5°C
Temperature measurement range: -103°C to +153°C
Low power consumption: typical standby current 0.01µA, peak measurement current 0.36mA, average measurement current 3.1μA (AVG=16, 1 measurement/s)
Wide operating voltage range: 1.8V to 5.5V
Temperature sensing resolution: 16-bit output 0.004°C
Configurable temperature conversion time: 15.3ms/8.5ms/5.2ms/2.2ms
Configurable single/periodic measurement
Up to 112-bit additional E2PROM space for user information
Standard I2C interface, also compatible with digital single-bus interface
Heater chip self-diagnosis function
Product Introduction
The MTS4 and MTS4B series are digital-analog mixed-signal temperature sensor chips with high temperature measurement accuracy of ±0.1°C, requiring no user calibration. The temperature sensing principle is based on the characteristic relationship between the PN junction temperature of CMOS semiconductors and bandgap voltage. After small-signal amplification, analog-to-digital conversion, and digital calibration compensation, the digital bus outputs, offering advantages such as high accuracy, good consistency, fast temperature measurement, low power consumption, flexible programmable configuration, and long lifespan.
The chip integrates a 16-bit ADC with a resolution of 0.004°C and has an ultra-wide operating range from -103°C to +153°C. The chip undergoes 100% testing and calibration before leaving the factory, fitting calibration coefficients based on temperature error characteristics, and the chip internally performs automatic compensation calculations. The chip supports digital I2C communication interface, temperature data memory access, and function configuration through digital protocol commands. The I2C interface is suitable for high-speed board-level applications, with a maximum interface speed of 2MHz.
The chip integrates non-volatile E2PROM storage cells for saving chip ID, high/low temperature alarm thresholds, temperature calibration correction values, and user-defined information such as sensor node numbers and location information.
I. Features of Digital Temperature Sensor Chip - MTS4:
High temperature measurement accuracy: ±0.1°C/±0.5°C
Temperature measurement range: -103°C to +153°C
Low power consumption: typical standby current 0.01µA, peak measurement current 0.36mA, average measurement current 3.1μA (AVG=16, 1 measurement/s)
Wide operating voltage range: 1.8V to 5.5V
Temperature sensing resolution: 16-bit output 0.004°C
Configurable temperature conversion time: 15.3ms/8.5ms/5.2ms/2.2ms
Configurable single/periodic measurement
Up to 112-bit additional E2PROM space for user information
Standard I2C interface, also compatible with digital single-bus interface
Heater chip self-diagnosis function
II. Applications of Digital Temperature Sensor Chip - MTS4:
