Product introduction

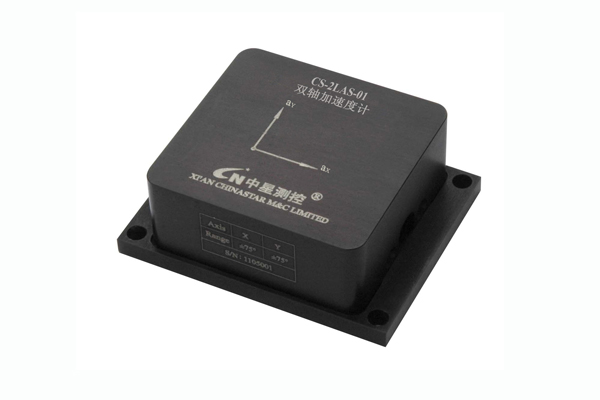

I. Features of the dual-axis accelerometer CS-2LAS-01:
Wide measurement range, digital RS485 output, full temperature range compensation, nonlinearity correction, small size, light weight, good shock and vibration resistance
II. Main application areas of the dual-axis accelerometer CS-2LAS-01:
Aircraft safety systems, seismic monitoring
III. Main technical specifications of the dual-axis accelerometer CS-2LAS-01:
| Model |
CS-2LAS-01 |
|
| Electrical characteristics |
||
| Supply voltage |
6～8 VDC |
|
| Supply current |
≤ 60 mA |
|
| Output method |
RS 485 V |
|
| Baud rate |
115200 bps |
|
| Data output rate |
200 Hz |
|
| Data output format |
16-bit two's complement |
|
| Performance specifications |
||
| Axis |
X |
Y |
| Range (Note 1) |
±10 g |
|
| Bandwidth (Note 2) |
≥50 Hz |
|
| Resolution |
0.005 g |
|
| Nonlinearity |
≤ 0.5% Fs |
|
| Zero bias (at 25°C) |
≤ 0.05 g |
|
| Zero bias temperature drift |
0.1 g |
|
| Start-up time |
≤ 1 s |
|
| Environmental characteristics |
||
| Operating temperature |
-40℃～+70℃ |
|
| Storage temperature |
-40℃～+125℃ |
|
| Shock resistance (0.5ms) |
2000g |
|
| Physical characteristics |
||
| Weight |
－ |
|
| Dimensions |
48×38×18 mm |
|
Note: ① Range selectable from ±2 to ±70g; ② Bandwidth selectable up to ≤400Hz;
