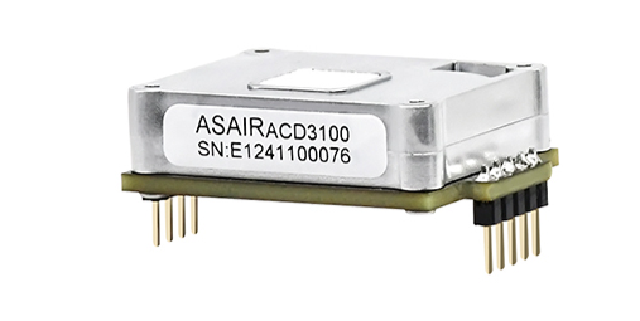

ACD3100 Dual-Channel Infrared CO2 Sensor - AMTACD3100
| Parameter | Value |
|---|---|
| Product Model | AMTACD3100 |
| 工作电压 | DC (5.0±0.1)V, ripple <50mV |
| Operating Current | Average current <45mA |
| Typical Power | 100mW@5V |
| Measurement Range | 400~5000ppm |
| Accuracy | ±(50ppm+3% of reading) |
| Preheating Time | 120s |
| Operating Conditions | -10~50℃; 0~95%RH (non-condensing) |
| Storage Conditions | -20~60℃; 0~95%RH (non-condensing) |
| Data Refresh Rate | 2s |
| Expected life | >10 years |
| Data | I²C/UART |
Product Introduction
AMTACD3100 detects carbon dioxide concentration in the air based on the non-dispersive infrared (NDIR) principle. AMTACD3100 offers excellent selectivity, no oxygen dependence, and long service life. It integrates infrared absorption gas detection technology, precision optical path design, and a high-precision dual-channel signal detection circuit, ensuring the accuracy and reliability of measurement results. In addition, it is equipped with a digital interface output, providing users with convenient data reading and interaction experience.
With its excellent performance and precision, AMTACD3100 is widely used in air quality monitoring, fresh air systems, air purification equipment, HVACR equipment, and many other fields, creating a healthier, more comfortable, and more energy-efficient living environment for people.
Main Application Areas
- Indoor Air Quality Monitoring — Monitors CO2 levels in offices, schools, and homes to ensure healthy indoor environments.
- HVAC Systems — Enables demand-controlled ventilation for energy efficiency and occupant comfort.
- Industrial Safety — Detects CO2 leaks in industrial processes and confined spaces to prevent hazards.
- Agriculture — Optimizes CO2 enrichment in greenhouses for enhanced plant growth.
- Smart Buildings — Integrates with building automation for real-time air quality management.
Keywords：CO2 sensor, infrared CO2 sensor, dual-channel CO2 sensor, NDIR CO2 sensor, AMTACD3100, industrial CO2 sensor, carbon dioxide sensor, gas sensor
