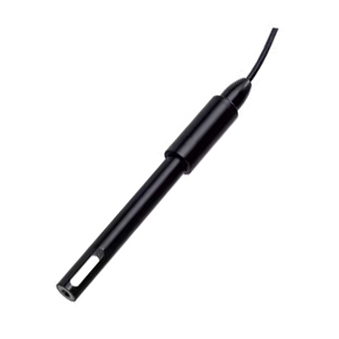

US Global Water Water Quality Conductivity Sensor - WQ-Cond
WQ-COND Conductivity Sensor Features:
0.5% reading accuracy
Dual 4-20mA output for conductivity and temperature
Measurement range of 0-20 Siemens/cm
Rugged housing suitable for harsh environments
Can measure conductivity at depths up to 30 meters
Fully encapsulated electrodes
Product Introduction
I. WQ-COND Conductivity Sensor Product Overview:
WQ-Cond Conductivity SensorUses 4-electrode measurement technology to provide accurate readings of conductivity and temperature over a wide range. Since the conductivity of ionic solutions increases with temperature, a built-in temperature sensor provides automatic temperature compensation of 2%/ºC relative to the standard 25ºC. The built-in interface module converts digital conductivity and temperature data into two independent 4-20mA signals, which can be connected to data loggers and programmable logic controller (PLC) devices respectively.
II. WQ-COND Conductivity Sensor Features:
0.5% reading accuracy
Dual 4-20mA output for conductivity and temperature
Measurement range of 0-20 Siemens/cm
Rugged housing suitable for harsh environments
Can measure conductivity at depths up to 30 meters
Fully encapsulated electrodes
III.WQ-COND Conductivity Sensor Applications:
Conductivity sensor and recorder for measuring water conductivity
IV. WQ-COND Conductivity Sensor Technical Specifications:
| Measurement Range | 0-200us/cm，200-2000us/cm，2-20ms/cm，20-200ms/cm，200-2000ms/cm |
| Resolution | 0.1 us/cm, 1us/cm, 0.01ms/cm, 0.1ms/cm, 1ms/cm (corresponding to the above measurement ranges) |
| Accuracy | ±0.5% of reading |
| Temperature Range | -5～+70℃ |
| Temperature Resolution | 0.01℃ |
| Temperature Accuracy | 0.2℃ |
| Temperature Compensation | Automatic (2%/°C, relative to 25°C standard) |
| Temperature Response | ≤20 seconds |
| Output | Dual 4-20mA signals (conductivity and temperature sensors) |
| Pressure | 35psi (25 meters water depth) |
| Immersion Depth | 36mm |
| Operating Voltage | 10-36VDC |
| Output Current | 20mA + output current of two sensors |
| Warm-up Time | 12 seconds |
| Operating Temperature | -5～+70℃ |
| Storage Temperature | -20～+100℃ |
| Dimensions | 22mm × 202mm (diameter × length) |
| Weight | 227g (including cable) |
| |
|
| Standard Configurations | |
| Model | Configuration |
| WQ-Cond-1 Conductivity Sensor | Measurement range: 0-200us, 7.6m cable, user manual |
| WQ-Cond-2 Conductivity Sensor | Measurement range: 200-2000us, 7.6m cable, user manual |
| WQ-Cond-3 Conductivity Sensor | Measurement range: 2-20ms, 7.6m cable, user manual |
| WQ-Cond-4 Conductivity Sensor | Measurement range: 20-200ms, 7.6m cable, user manual |
| WQ-Cond-5 Conductivity Sensor | Measurement range: 200-2000ms, 7.6m cable, user manual |
| |
|
| Optional Accessories | |
| Model | Description |
| WQEXC | Extension cable, up to 152M |
| DDO505 | Plastic protective housing for conductivity sensor |
| DDO510 | Stainless steel protective housing for conductivity sensor |
