Product Introduction

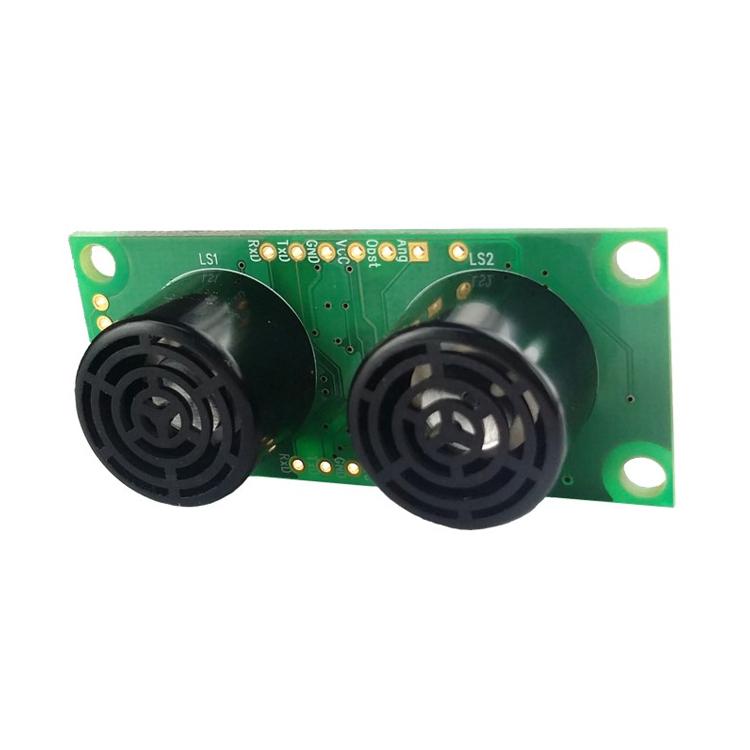

South Korea Hagisonic Ultrasonic Distance Sensor Module HG-C40U Description:
•ATmega 8 MCU
• Measures distance to obstacles and sends data via UART communication.
• Resolution within 5mm.
• Two transmission modes selectable, suitable for various applications.
− Free-running mode: When powered, the sensor itself sends trigger and burst signals (for basic applications)
− External trigger mode: External system (controller or processor circuit) controls trigger signal – for advanced applications
• Two input power supplies – low voltage (5V) for processor circuits; high voltage (12V) for controllers.
※ Factory default: 12V
• Various setting options
− Free-running / UART trigger / external trigger settings
− Setting whether to use ring buffer
− UART communication baud rate setting
− Free-running trigger interval
• Output signals
− Outputs distance data via UART (ASCII, mm)
− Real-time amplification of actually received ultrasonic waves
− Real-time conversion of detection signals to TTL-level rectangular signals (square waves)
• High-performance ASIC chip ensures stable transmission and sensitive reception.
• Communication from sensor to PC uses 'interface board' (RS232, power regulator)
• Data display uses monitoring program on PC (HyperTerminal can be used)
South Korea Hagisonic Ultrasonic Distance Sensor Module HG-C40U Parameters:
| Communication |
UART(TTL) |
| Input Voltage |
5V, 12V(default) |
| Current Consumption |
20mA(Typ) ~ 30mA(Max) |
| Frequency |
40kHz |
| Distance |
3.5m (at 5V) |
| 5m (at 12V) |
|
| Resolution |
5mm |
| Dimensions |
Module: 50x22x25 (mm) |
| Sensor: Φ16 |
