Digital high-precision temperature sensor chip

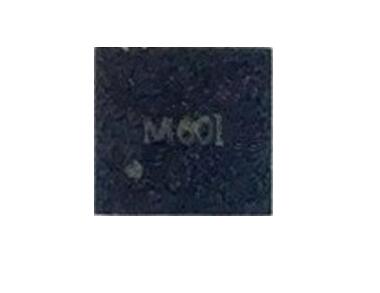

Digital High-Precision Temperature Sensing Chip - M601 M1601 M1820

Temperature measurement accuracy:
±0.1°C (max) (+28°C to +43°C)
or ±0.1°C (maximum) (+0°C to +50°C)
or ±0.1°C (maximum) (+20°C to +70°C)
Temperature measurement range: -70°C ~ +150°C
Low power consumption: typical standby current 0.1µA@3.3V, peak temperature measurement current 0.45mA@3.3V, average temperature measurement current 5.2μA (@3.3V, 1s period)
Wide operating voltage range: 1.8V-5.5V
Temperature sensing resolution: 16-bit output, maximum resolution 0.004°C
Temperature conversion time configurable: 10.5ms/5.5ms/4ms
Configurable single/periodic measurement
User-configurable temperature alarm
32-bit additional E2PROM space for storing user information
Each chip has a 64-bit ID serial number, facilitating multi-point networking and addressing
Standard single-bus interface

Product Model: M601 M1601 M1820

Inquiry

shareShare to

Product Introduction

Digital High-Precision Temperature Sensing Chip - M601, M1601, M1820 series are high-precision digitalDigital-analog mixed-signal temperature sensing chip. M601 is a body temperature chip,relativelyHigh temperature measurement accuracy is ±0.1°C in the range of +28°C to +43°C;M601Z、M1601Z、M1820ZrelativelyHigh temperature measurement accuracy of 0°C to +50℃ range ±0.1℃; M601W, M1601W,M1820WrelativelyHigh temperature measurement accuracy of +20℃ to +70℃ range0.1°C accuracy; no user calibration required.

The temperature sensing principle of the temperature chip is based on the CMOS semiconductor PN junction temperature andThe characteristic relationship of bandgap voltage, after small-signal amplification, analog-to-digital conversion,Digital calibration and compensation, then digital bus output, with high accuracy, goodGood consistency, fast temperature measurement, low power consumption, flexible programmable configuration, longLong lifespan, etc.

The temperature chip has a built-in 16-bit ADC with a resolution of 0.004°C andUltra-wide operating range from -70°C to +150°C. The chip has a unique 64-Unique ID serial number, 100% tested and calibrated before leaving the factory, withCalibration coefficient fitting based on temperature error characteristics, with internal self-Automatic compensation calculation. To simplify system application, the chip's ID searchSearch, temperature data memory access, function configuration, etc., are all based on digital singleBus protocol commands, the host microprocessor only needs one GPIOPort for read and write access. The single-bus communication interface sharesA single data bus to achieve low-cost multi-node sensor acquisition and networkingThis solution has long transmission distance, supports many nodes, and facilitates spatial distributionDistributed sensor networking.relativelySupports up to 100 nodes, 100 to 500Meter-long temperature measurement node serial networking.

Built-in non-volatile E2PROM storage unit for saving chipChip ID number, high/low temperature alarm thresholds, temperature calibration correction values, and userUser-defined information, such as sensor node number, location information, etc.The M601 series (M601, M601Z, M601W) also has an ALERTalarm indication pin, facilitating user expansion of hardware alarm applications.

1. Characteristics of Digital High-Precision Temperature Sensing Chip - M601, M1601, M1820:

Temperature measurement accuracy:
±0.1℃（relativelymax) (+28°C to +43°C)
or ±0.1°C (relativelyMaximum) (+0°C to +50°C)
or ±0.1°C (relativelyMaximum) (+20°C to +70°C)
Temperature measurement range: -70°C ~ +150°C
Low power consumption: typical standby current 0.1µA@3.3V, peak temperature measurement current 0.45mA@3.3V, average temperature measurement current 5.2μA (@3.3V, 1s period)
Wide operating voltage range: 1.8V-5.5V
Temperature sensing resolution: 16-bit output,relativelyHigh resolution 0.004°C
Temperature conversion time configurable: 10.5ms/5.5ms/4ms
Configurable single/periodic measurement
User-configurable temperature alarm
32-bit additional E2PROM space for storing user information
Each chip has a 64-bit ID serial number, facilitating multi-point networking and addressing
Standard single-bus interface

2. Applications of Digital High-Precision Temperature Sensing Chip - M601, M1601, M1820：

Smart Wearable

Electronic thermometer

Animal body temperature detection

Medical electronics

Cold chain logistics, warehousing

Smart home

Heat meters, gas meters, water meters

Replacement for PT100/PT1000
