Digital high-precision temperature sensor chip

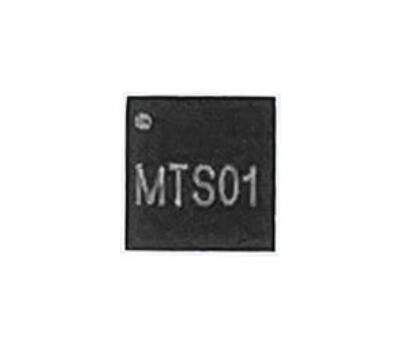

Digital high-precision temperature sensing chip - MTS01

Temperature measurement accuracy: ±0.1°C (maximum) (+28°C to +43°C)
or ±0.1°C (maximum) (+0°C to +50°C)
or ±0.1°C (maximum) (+20°C to +70°C)
Temperature measurement range: -70°C ~ +150°C
Low power consumption: typical standby current 0.1µA@3.3V, peak temperature measurement current 0.45mA@3.3V, average temperature measurement current 5.2μA (@3.3V, 1s cycle)
Wide operating voltage range: 1.8V-5.5V
Temperature sensing resolution: 16-bit output, highest resolution 0.004°C
Temperature conversion time configurable: 10.5ms/5.5ms/4ms
Configurable single/periodic measurement
User-configurable temperature alarm
32-bit additional E2PROM space for storing user information
Each chip has a 64-bit ID serial number, facilitating multi-point networking and addressing
Standard single bus interface & I2C interface

Product Model: MTS01

Inquiry

shareShare to

Product Introduction

Digital high-precision temperature sensing chips - MTS01, MTS01Z, and MTS01W areHigh PrecisionDigital-analog mixed-signal temperature sensing chip. MTS01 is a body temperature chipchips with a higher temperature measurement accuracy of ±0.1°C in the range of +28°C to +43°C;MTS01Z has a higher temperature measurement accuracy of ±0.1°C in the range of 0°C to +50°C0.1°C; MTS01W has a higher temperature measurement accuracy of +20°C to +70°CRange ±0.1°C accuracy; no user calibration required.The temperature sensing principle of the temperature chip is based on the relationship between CMOS semiconductor PN junction temperature andThe characteristic relationship of bandgap voltage, after small-signal amplification, analog-to-digital conversion,Digital calibration and compensation, then digital bus output, with high accuracy, goodGood consistency, fast temperature measurement, low power consumption, flexible programmable configuration, longLong lifespan, etc.

The temperature chip has a built-in 16-bit ADC with a resolution of 0.004°C andUltra-wide operating range from -70°C to +150°C. The chip undergoes factoryPassed 100% test calibration, calibrated according to temperature error characteristicsCoefficient fitting, with automatic compensation calculation performed internally by the chip. The chip supportsSupports digital single bus and I2C dual communication interface: single bus is suitable for long linesCable, multi-node distributed sensing application scenarios, supporting up to 100Temperature measurement nodes connected in series in a network of 100 to 500 meters long. ChipHas a unique 64-bit ID serial number, chip ID search, measurementTemperature data memory access, function configuration, etc., can all be done through digital single busProtocol commands are implemented, and the host microprocessor only needs one GPIOPort for read/write access;AccessI2C interface is suitable for high-speed board-levelApplication scenarios, with a maximum interface speed of up to 400kHz.

Built-in non-volatile E2PROM storage unit for saving chipChip ID number, high/low temperature alarm thresholds, temperature calibration correction values, and userUser-defined information, such as sensor node number, location information, etc.The chip also has an ALERT alarm indication pin, making it convenient for users to expand hardwareAlarm applications.

1. Features of the digital high-precision temperature sensing chip - MTS01:

Temperature measurement accuracy: ±0.1°C (maximum) (+28°C to +43°C)
or ±0.1°C (relativelyMaximum) (+0°C to +50°C)
or ±0.1°C (relativelyMaximum) (+20°C to +70°C)
Temperature measurement range: -70°C ~ +150°C
Low power consumption: typical standby current 0.1µA@3.3V, peak temperature measurement current 0.45mA@3.3V, average temperature measurement current 5.2μA (@3.3V, 1s cycle)
Wide operating voltage range: 1.8V-5.5V
Temperature sensing resolution: 16-bit output,relativelyHigh resolution 0.004°C
Temperature conversion time configurable: 10.5ms/5.5ms/4ms
Configurable single/periodic measurement
User-configurable temperature alarm
32-bit additional E2PROM space for storing user information
Each chip has a 64-bit ID serial number, facilitating multi-point networking and addressing
Standard single bus interface & I2C interface

2. Applications of the digital high-precision temperature sensing chip - MTS01：

Smart Wearable

Electronic thermometer

Animal body temperature detection

Medical electronics

Cold chain logistics, warehousing

Smart home

Heat meters, gas meters, water meters

Replacement for PT100/PT1000
