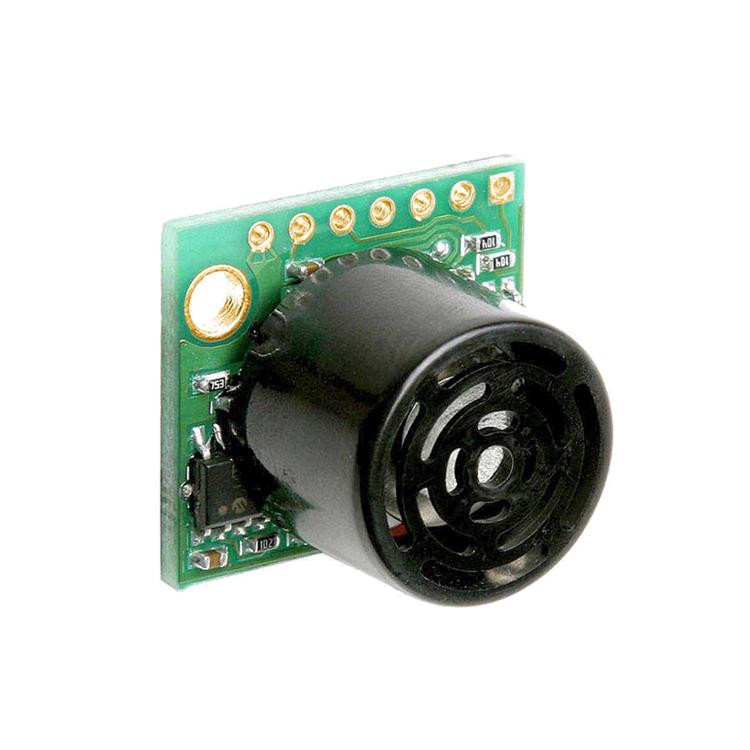

I. MaxBotix Human Detection SensorMB1014 Description

Human Detection Sensor MB1014Designed for pedestrian and object detection, and allows multiple sensors to operate simultaneously in the same environment. Powered by 2.5V~5.5V,MB1014Provides proximity detection of objects at specific distances in an extremely compact form factor.

Human Detection Sensor MB1014Allows users to integrate multiple sensors into a single system with little or no mutual interference that is common with other ultrasonic sensors.MB1014Key features include easy-to-use logic (high/low) output and RS232 format serial output.

II. MaxBotix Human Detection Sensor MB1014Features:
Near Object Detection
Can operate simultaneously with other nearby sensors
Approximately 2.5 seconds object acquisition time,
Approximately 1.5 seconds object recovery time
Object detection includes zero-distance objects
Range up to 254 inches on Pin5
2.5V~5.5V supply, 2mA typical current consumption
All interfaces can be activated simultaneously
Serial data, 0~Vcc, baud rate 9600 81N for reliable proximity information
Digital logic high/low (true/false) output
Continuously variable gain for control and sidelobe suppression
Free-run mode, continuously measures and outputs proximity information
42KHz sensor operating frequency
Once commanded to start ranging, it immediately senses the surrounding environment
Designed for protected indoor environments

III. MaxBotix Human Detection Sensor MB1014Advantages:
Low cost
Up to 20 sensors can be used simultaneously in the same environment
Reliable proximity distance information
Also functions as a rangefinder (still reports ranging information via serial port)
Mounting holes on the circuit board
Fast measurement cycle
Extremely low power consumption, ideal for multi-sensor operation or battery-powered systems.
Outputs allow users to free up the processor
Serial data, 0~Vcc, baud rate 9600 81N for reliable proximity information
Users can choose any output
Can be triggered internally or externally
Object acquisition and recovery times can be read with nominal NRE charge
High-quality beam characteristics
Lowest power consumption proximity sensor

IV. MaxBotix Human Detection Sensor MB1014Applications and Usage:
Proximity zone detection

Pedestrian detection

Booths/Kiosks

Robotic autonomous navigation

Autonomous navigation

Multi-sensor arrays

1Depends on sensor type and installation

2Ranging information is unreliable when multiple sensors operate simultaneously. Refer to page 4 of this datasheet for more information.

About Ultrasonic Sensors
