Product Introduction

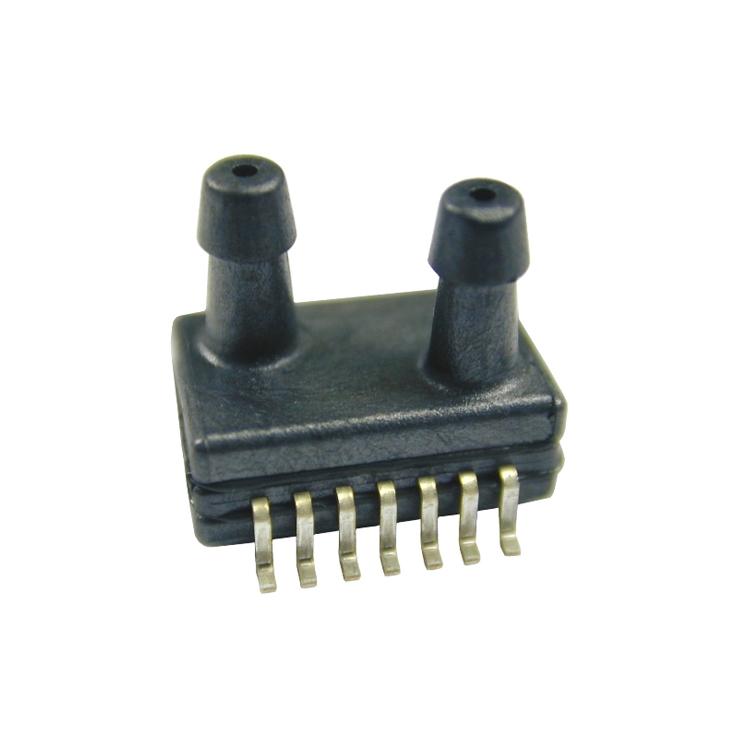

1. Description of US MEAS Digital Mini Pressure Sensor MS5525DSO:
MS5525DSO is a new generation of digital mini pressure sensor with SPI and I2C bus interface designed for high-quality OEM users. The sensor module includes a pressure sensor and a 24-bit delta-sigma ultra-low power ADC with internal factory calibration coefficients. It provides 24-bit digital pressure and temperature and different operating modes, allowing users to optimize conversion speed and current consumption. MS5525DSO can be connected to almost any microcontroller. The communication protocol is simple and does not require programming of internal registers.
This new sensor module is manufactured based on MEMS technology and benefits from TE's proven high-quality production experience and technical pressure modules, which have been widely used for over a decade.
The sensor is available in single and dual port configurations and can measure absolute, gauge, compoundpressureand differential pressure from 1 to 30 psi.
2. Applications of US MEAS Digital Mini Pressure Sensor MS5525DSO:
Factory Automation
Altitude and Airspeed Measurement
Medical Devices
Leak Detection
3. US MEASDigital Mini Pressure SensorMS5525DSO Parameters:
| Sensor Type |
Digital Pressure and Altitude Sensor Module |
| Type |
Differential, Absolute, Gauge |
| Supply Voltage (V) |
1.8 - 3.6 |
| Dimensions |
12.5 x 7.9 mm [ .49 x .31 in ] |
| Operating Temperature |
-40 ~ 125 °C [ -40 ~ 257 °F ] |
| Pressure (psi) |
1, 2, 5, 15, 30 |
| Output |
24 bit ADC |
| Resolution |
2 |
| Accuracy |
±.25°C |
| Output Interface |
I²C and SPI (Mode 0, 3) |
| Pressure |
60 psi |
| Package |
SOIC-14 |
| Package Type |
Single Barb, Single Tube, Dual Barb, Dual Hole |
