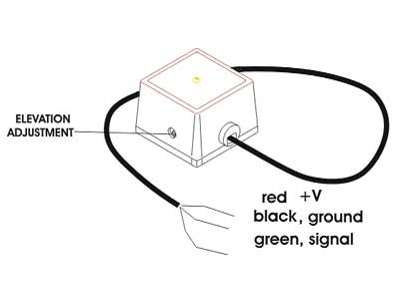

US NovaLynx Barometric Pressure Sensor - 110-WS-16BP
Range: 1800px to 1950px Hg (956.6 to 1041.3 mb)
Measurement Span: 158.75px Hg (85 mb)
Resolution: ± 0.75px Hg or ± 0.3 mb
Altitude Compensation: 0 ~ +3048 m, screwdriver adjustable
Relative Accuracy: 0.13 cm Hg
Input: 10~18 VDC
Output Voltage: 0~5 VDC = 6.35 cm Hg (85 mb) span
Product Introduction
110-WS-16BP Barometric Pressure Sensor Description
The 110-WS-16BP barometric pressure sensor uses a piezoresistive sensing element that responds to changes in resistance corresponding to changes in atmospheric pressure. The resistance is converted into voltage, and a microprocessor (or other data processor) calculates the barometric pressure at the altitude of the barometer's location.
110-WS-16BP Barometric Pressure Sensor Specifications:
Range: 1800px to 1950px Hg (956.6 to 1041.3 mb)
Measurement Span: 158.75px Hg (85 mb)
Resolution: ± 0.75px Hg or ± 0.3 mb
Altitude Compensation: 0 ~ +3048 m, screwdriver adjustable
Relative Accuracy: 0.13 cm Hg
Input: 10~18 VDC
Output Voltage: 0~5 VDC = 6.35 cm Hg (85 mb) span
