Online pH and Turbidity Transmitter for Community Water Tanks - AMT/FXY-EG

Online pH and Turbidity Transmitter for Community Water Tanks

1. Product Overview of Online pH and Turbidity Transmitter for Community Water Tanks

This device is designed for secondary water supply scenarios such as residential buildings, municipal pump rooms, and community water tanks.Integrated multi-parameter water quality online monitoring terminal. Can be paired withpH, turbidity, residual chlorine, dissolved oxygen, conductivity, temperature and other water quality sensors, achieving water quality24hour real-time monitoring, data upload, over-limit alarm and equipment linkage, effectively solving problems such as lagging water quality monitoring and difficult management and control in secondary water supply, suitable for smart water renovation and daily water supply safety supervision.

2. Complete Technical Parameter Table of Online pH and Turbidity Transmitter for Community Water Tanks

Item	Detailed parameters
Display screen	7inch high-definition screen, resolution1024*600
Power supply method and power consumption	9-24VDC, power consumption <8W；220VAC, power consumption <10W
Communication signal output	RS485*1channels (standardModbusprotocol);4-20mA*5channel analog output
Wireless transmission module	Built-in4GFull network communication module, supports remote upload, remote debugging, and over-limit push
Relay output	6relay linkage outputs, can link pumps, valves, disinfection equipment and other peripherals
Body material	ABSEngineering materials, anti-aging, anti-corrosion, wear-resistant
工作温度	0℃～45℃
防护等级	IP65(dustproof, splash-proof, suitable for complex pump room conditions)
Overall dimensions	400*300*170mm(length*wide*deep)
Overall weight	3kglightweight wall-mounted installation

3. Hardware Function Introduction of Online pH and Turbidity Transmitter for Community Water Tanks

1. High-definition display interface

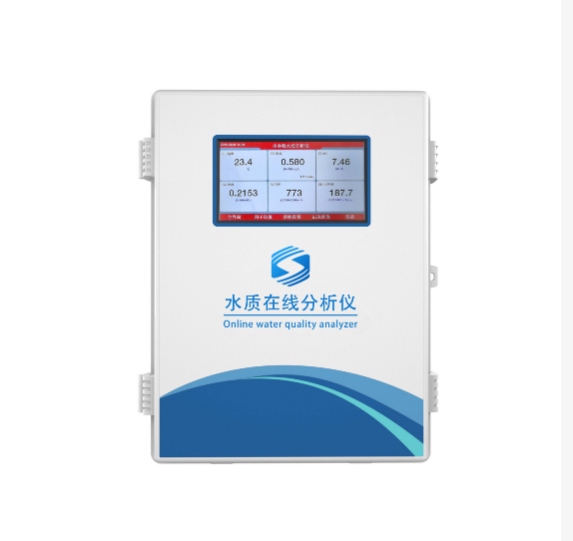

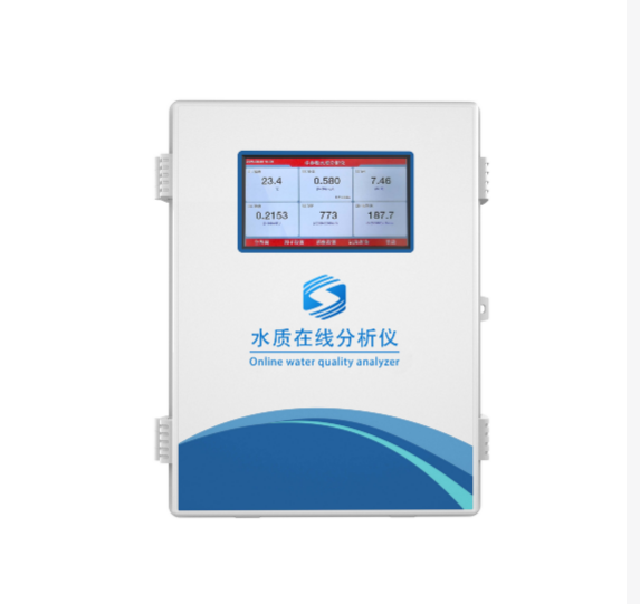

Equipped with7inch high-definition display, real-time display of various water quality parameters, operating status, historical curves and alarm records, intuitive interface, simple operation, supports on-site parameter setting and calibration debugging.

2. Multiple signal interfaces, strong compatibility

Standard1channelsRS485interface, can connect to various digital water quality sensors;5channels4-20mAAnalog output, can seamlessly connect toPLC, industrial computers, host computers and other automation systems. Paired with4GFull network wireless transmission, free from wired limitations, enabling unattended remote monitoring, data upload and abnormal push notifications.

3. Multi-relay intelligent linkage

Built-in6independent relay outputs, can customize water quality over-limit thresholds, automatically link disinfection equipment, pumps, valves and other peripherals, achieving fully automatic closed-loop management and control of water quality monitoring and abnormal handling, greatly reducing manual operation and maintenance costs.

4. Industrial-grade durable design

Adopts high-strengthABSbody, withIP65protection level, adaptable to humid and dusty pump room conditions,0℃～45℃Wide temperature stable operation, lightweight overall design, convenient wall-mounted installation, suitable for various secondary water supply station renovations and new projects.

4. Adapted Monitoring Parameters

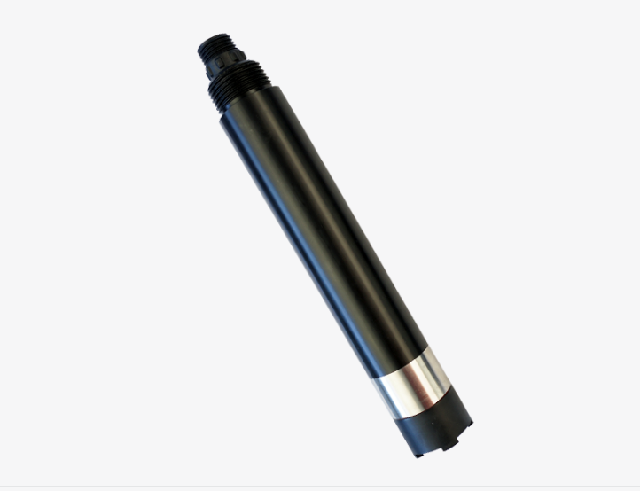

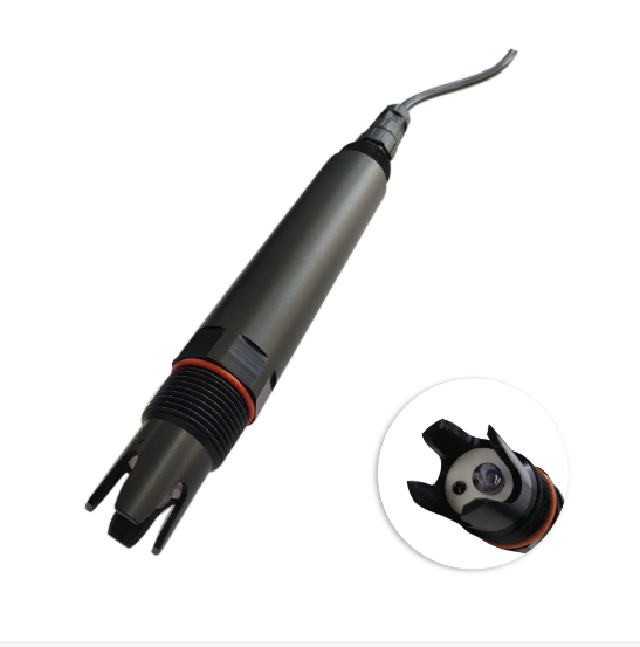

Can be freely matched with single/Multi-parameter sensor combination, meeting the full water quality monitoring needs of secondary water supply:pHpH, water turbidity, free residual chlorine, dissolved oxygenDO, conductivity/TDS, water temperature, and can also be equipped with a six-parameter integrated probe to achieve full indicator monitoring, with real-time data storage, queryable and traceable, meeting water utility acceptance standards.

5. Product Core Advantages

• Wide compatibility: dual power supply, multiple signal interfaces, suitable for renovation and new construction of old and new water projects, connecting to mainstream platforms and industrial control equipment.

• Intelligent fully automatic：4GRemote transmission+6relay linkage, achieving integrated intelligent management and control of monitoring, alarm, and equipment start/stop.

• Stable and durable: low power consumption operation,IP65Industrial protection and anti-interference design, suitable for long-term uninterrupted online monitoring.

• Data compliance: real-time visual data, curve recording, over-limit alarm, complete and traceable data, meeting regulatory acceptance requirements.

6. Applicable Scenarios

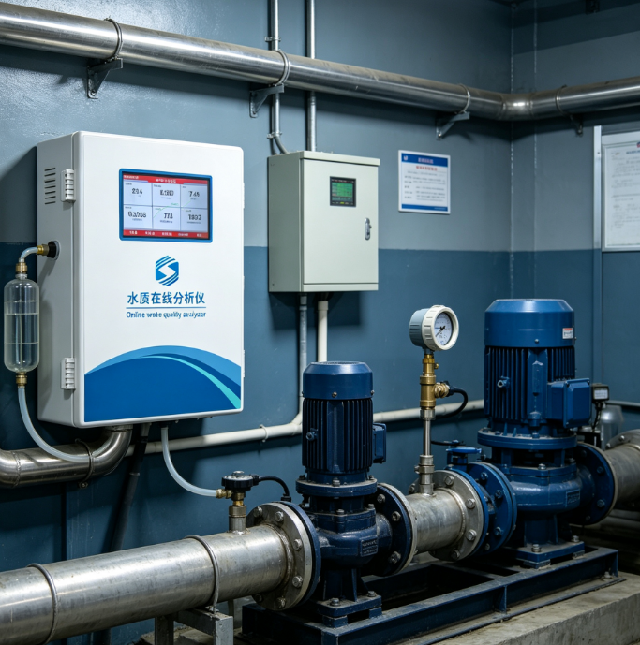

Suitable for urban residential secondary water supply, high-rise building water supply, municipal pump rooms, community storage tanks, pipe network end water quality monitoring, industrial park water supply, and renovation of old water systems, and is the core supporting equipment for smart secondary water supply safety monitoring.
