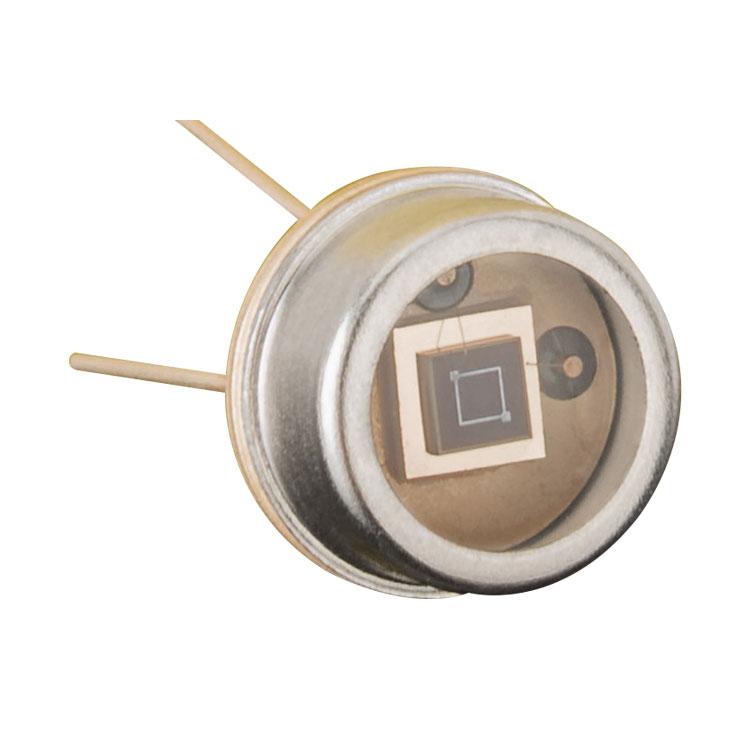

German SGLUX UV Photodiode - SG01XXL-8ISO90
1. Made of silicon carbide (SiC) material
2. Broadband (UVA+UVB+UVC)
3. Effective detection area 36mm2
4. 10uW/cm2 peak irradiance generates approximately 468nA current
5. High chip stability (certified by German PTB)
Product Introduction
UV Photodiode SG01XXL-8ISO90 Features:
1. Made of silicon carbide (SiC) material
2. Broadband (UVA+UVB+UVC)
3. Effective detection area 36mm2
4. 10uW/cm2 peak irradiance generates approximately 468nA current
5. High chip stability (certified by German PTB)
About Silicon Carbide Material (SiC)）：
SiC can withstand extreme radiation hardness, nearly visible-blind, low dark current, high-speed response, and low noise special properties; these features make SiC an excellent material for visible-blind UV detectors. SiC detectors canlong-termoperate at temperatures up to 170°C, and the temperature coefficient of the signal (responsivity) is also very low, <0.1%/K. Due to low noise (dark current at fA level), very low UV radiation intensity can be reliably measured (with appropriate amplifier).
SiC photodiodes can be used as unfiltered broadband detection devices or with optical filters, providing response to UVA, UVB, and UVC bands.
UV Photodiode SG01XXL-8ISO90 Technical Parameters:
| Model |
SG01F-5ISO90 |
| Responsivity |
0.13A/W |
| Typical Wavelength |
280nm |
| Wavelength Range (S=0.1*Smax) |
221-358nm |
| Visible Blindness (Smax/S>405nm) |
>1010 |
| Effective Detection Area |
36mm2 |
| Dark Current (1V reverse bias) |
120fA |
| Capacitance |
9000pF |
| Short Circuit Current (10uW/cm2 peak irradiance) |
Approximately 468nA |
| Temperature Coefficient |
<0.1%/K |
| Operating Temperature |
-55～+170℃ |
| Storage Temperature |
-55～+170℃ |
| Soldering Temperature (3S) |
260℃ |
| Reverse Voltage VRmax |
20V |
| Physical Characteristics |
Sealed in T08 metal housing, 2 pins insulated, 1 pin grounded |
UV Photodiode SG01XXL-8ISO90 Application Fields:
Mainly used for flame control (industrial boilers), water treatment (UV intensity insurance), UV astronomy (array detection), projectile tracking (UV cameras), ozone and pollutant monitoring, flame sensing (fire alarm safety devices oil droplet monitoring), testing UV intensity in sunlight (gifts, cosmetic appliances), UV lamp UV intensity testing (disinfection efficiency inspection of medical devices or civil disinfection cabinets), etc.
