Thermal Conductivity Gas Sensor TCS208F Description:
The TCS208F gas thermal conductivity sensor is manufactured using MEMS processing technology, a concentration-type sensor that responds to the difference in thermal conductivity between the measured component and the reference gas. The product has advantages such as wide detection range, high reliability, easy installation, and simple maintenance.
The TCS208F gas thermal conductivity sensor can be widely used for gas composition detection of natural gas, CH4, H2, CO2, CO, SF6, Xe, He, NH3, etc., and can also be used to measure very small gas volume changes.
Thermal Conductivity Gas Sensor TCS208FFeatures:
High measurement accuracy
High sensitivity
Integrated temperature compensation, low drift
Small size, fast response
Can measure tiny gas volumes
High cost performance
TO8 package, strong impact resistance
Thermal Conductivity Gas Sensor TCS208F Applications:
Measuring components or content of natural gas, CO2, methane, helium, xenon, etc., various biochemical detection instruments
Analysis of natural gas composition and source
CO2 and CH4 content in landfills and biogas digesters
He or Xe content in air mixtures
H2 content in circulating gas of hydrogen-cooled generator units in power plants
CO2 content in combustion exhaust gas of industrial kilns and boilers
Hydrogen measurement in ammonia synthesis production process in fertilizer plants
Measurement of excess hydrogen in argon production process
Helium measurement for protective gas in power switch contacts

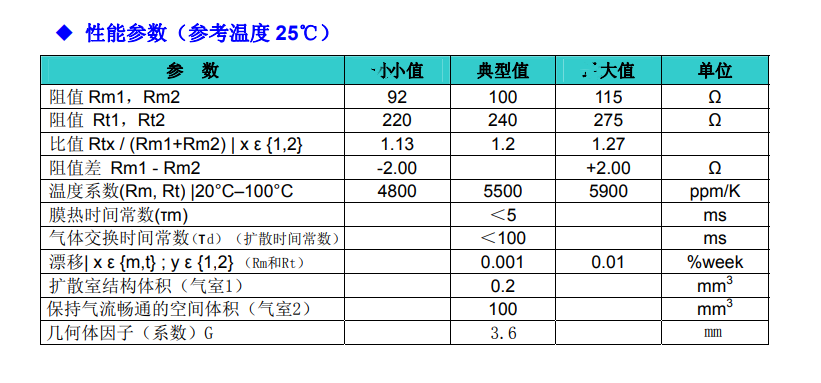

Thermal Conductivity Gas Sensor TCS208F Parameters:

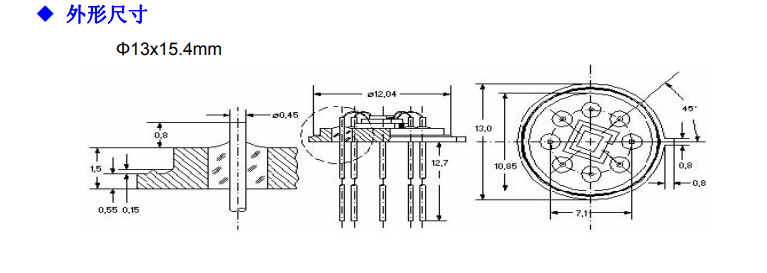

Thermal Conductivity Gas Sensor TCS208F Dimensions:
