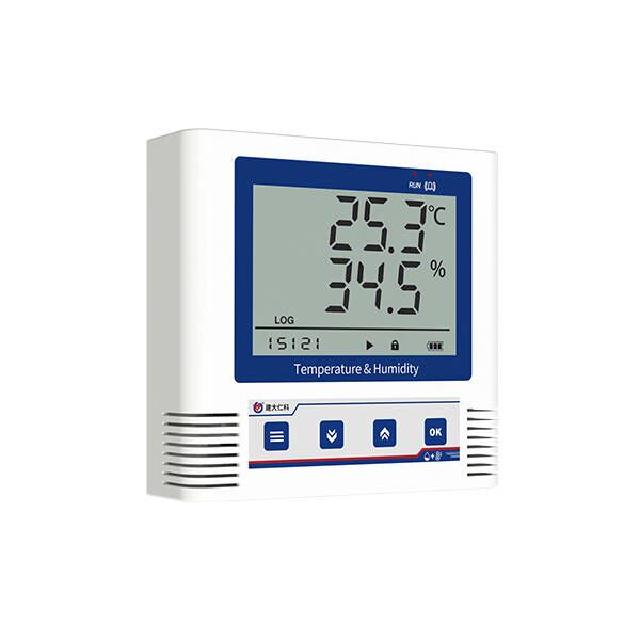

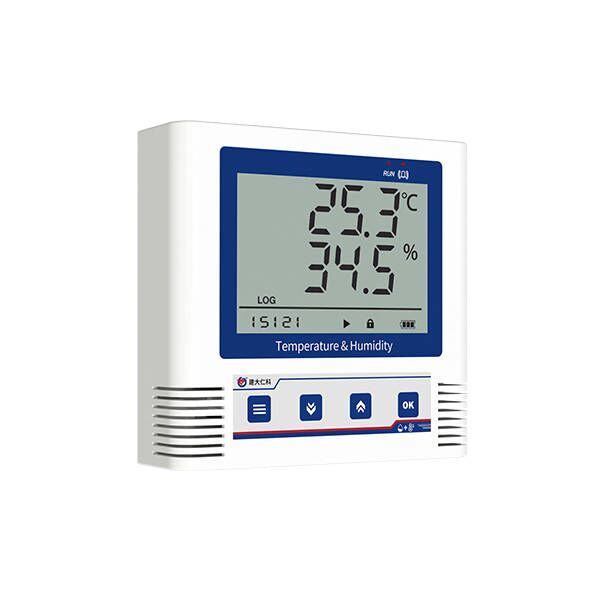

Product Introduction
Adopts temperature measurement unit imported from the USA, ensuring precise measurement;
Adopts a dedicated analog circuit, wide operating temperature range, compatible with both four-wire and three-wire connections;
10~30V wide voltage range power supply, complete specifications, easy installation;
Widely applicable to occasions requiring temperature detection such as communication equipment rooms, distribution cabinets, warehouse buildings, industrial control sites, etc.
| DC Power Supply (Default) | 10~30V DC | |
| Maximum power consumption | Current output | 1.2W |
| Voltage output | 1.2W | |
| Accuracy (default) | Temperature | ±0.5℃（25℃） |
| Transmitter circuit operating temperature and humidity | -20℃~+60℃, 0%RH~95%RH (non-condensing) | |
| Temperature measurement range of extended flat high-temperature probe | -40℃~+120℃ (using high-temperature wire) | |
| Temperature measurement range of other probes | -40℃~+80℃ | |
| Long-term stability | Temperature | ≤0.1℃/y |
| Response time | Temperature | ≤25s (1m/s wind speed) |
| Output signal | Current output | 4~20mA |
| Voltage output | 0~5V/0~10V | |
| Load capacity | Voltage output | Output resistance ≤250Ω |
| Current output | ≤600Ω | |
Main Application Areas
- HVAC Systems — Monitors supply, return, and room temperatures for efficient climate control in commercial and residential buildings.
- Industrial Process Control — Provides accurate temperature feedback for manufacturing processes, ensuring product quality and operational safety.
- Cold Chain & Warehousing — Tracks temperature in cold storage, refrigerated warehouses, and transport to prevent spoilage of sensitive goods.
- Building Automation — Integrates with BMS for centralized temperature monitoring and energy management in smart buildings.
- Laboratory & Clean Rooms — Maintains precise temperature conditions required for research, testing, and controlled environments.
Keywords：temperature transmitter, LCD temperature transmitter, analog temperature transmitter, 86 box temperature transmitter, single temperature transmitter, industrial temperature sensor, temperature transducer, wall mount temperature transmitter
