Product Introduction

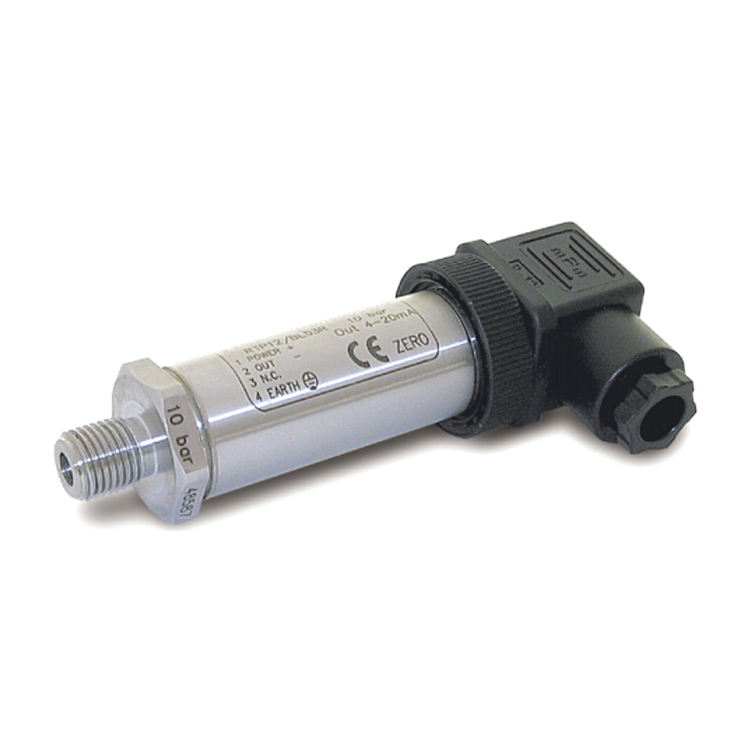

1. TP14 Series Pressure Transmitter Product Description:
The TP14 series pressure transmitters can measure relative pressure and absolute pressure, suitable for gas and liquid pressure measurement, including sewage, steam, mildly corrosive liquids and gases. The pressure chamber of the TP14 series is machined from a single-piece 17-4PH stainless steel structure, with all-metal sealing and no leakage. Due to no O-rings, no welds, and no direct contact with the measuring medium, stability and durability are excellent.
2. TP14 Series Pressure Transmitter Features：
Relative pressure: 0.1~20bar
Absolute pressure: 1~2000bar
Accuracy: 0.1% (TP14), 0.05% (LabTP14)
Linearity and hysteresis: ≤±0.1% (TP14), ≤0.05% (LabTP14)
3. TP14 Series Pressure Transmitter Application Fields:
The products are mainly used in industrial process control, HVAC systems, refrigeration systems, automatic detection systems, construction machinery, pumps and compressors, hydraulic/pneumatic systems, agricultural machinery, energy management, etc.
