Product Introduction

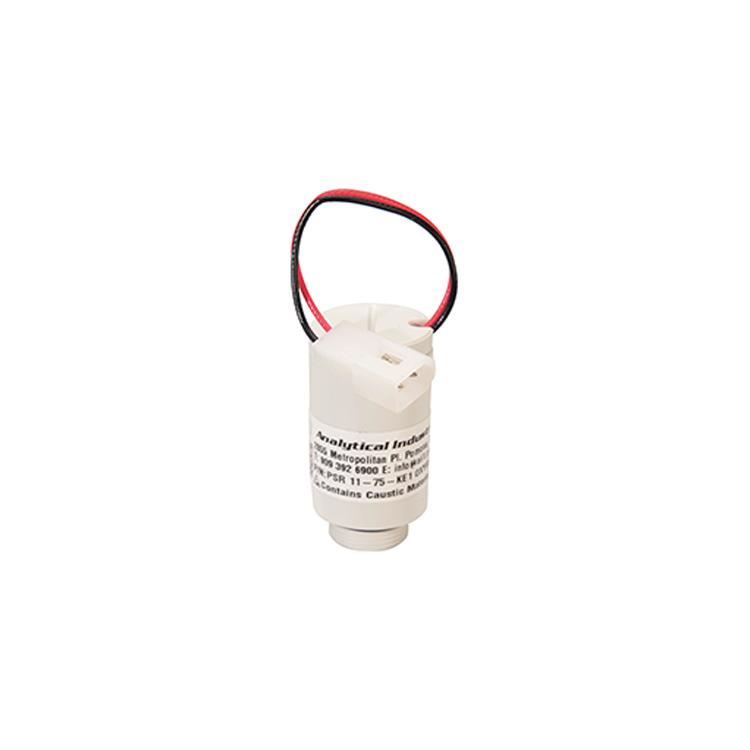

US AIIOxygen Sensor - PSR-11-75-KE1 Description:
Made in the USA and medically certified, the electrochemical galvanic oxygen sensor GPR-11-75-KE1 offers excellent accuracy and stability, and is individually tested before shipment. New sensors are sourced directly from production, with extended service life and long warranty. Compliant with FDA, MDSAP, ISO13485, ISO9001.
US AIIKey Features of Oxygen Sensor - PSR-11-75-KE1:
Oxygen sensor compatible with:
Vaportherm Precision Flow
Replacement sensor for:
Maxtec OM25A Analyzer
US AIISpecifications of Oxygen Sensor - PSR-11-75-KE1:
| Measurement Range |
0-100% |
| Accuracy |
+/-1% (Full Scale) |
| Signal Output |
10-14 mV |
| Linearity |
+/-1% Full Scale) |
| Response Time T90 |
13s |
| Temperature Coefficient |
Compensation |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
0 to 25°C |
| Shelf Life |
6 months |
| Humidity Non-condensing (Expected Life) |
0-99%RH |
| Expected Life |
60 months |
| Shelf Life |
18 months |
| Electrical Connector |
3" wire plug 2-position connector TE Connectivity/AMP |
