Product Introduction

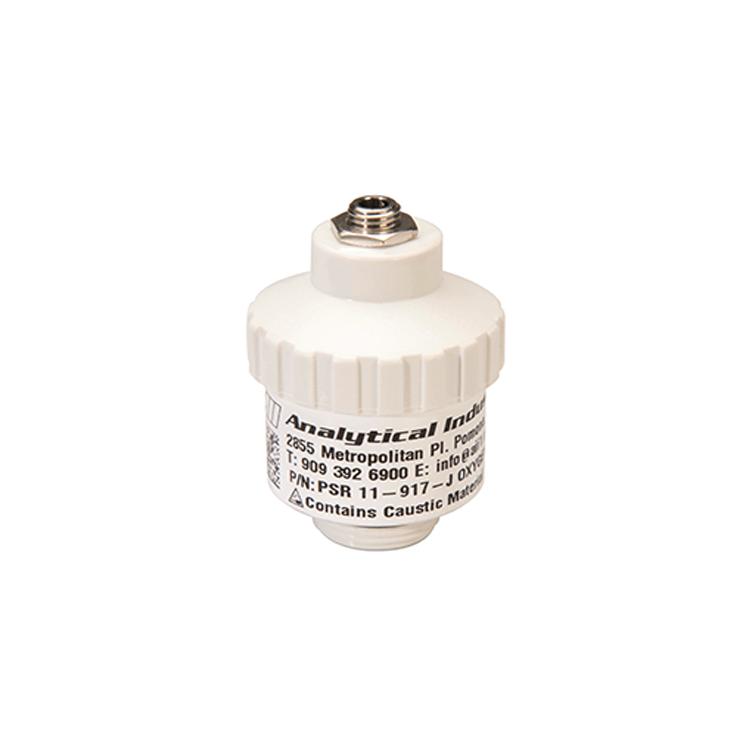

US AIIOxygen Sensor - PSR-11-917-J Description:
Made in the USA and medically certified electrochemical galvanic oxygen sensorPSR-11-917-JOffers excellent accuracy and stability, and is individually tested before shipment. Brand new sensors are obtained directly from production, with extended service life and long warranty. Compliant with FDA, MDSAP, ISO13485, ISO9001
US AIIKey Features of Oxygen Sensor - PSR-11-917-J:
Oxygen Sensor Compatible:
Lifecare PLV102 Ventilator
MEDlXNatalcare Incubator
MSA Mini Oxl,ll,1l& 3000 Analyzers/Monitors
Precision Medical PM5900 and PM5900L
Puritan Bennet 7820 Monitor
Philips Respironics Espirit and V200 Ventilator
Stephan Christina Ventilator
Taema Ceasar Ventilator (newer)
Teledyne AX 300 Analyzer & MX 300 Monitor
Takaoka Kt605
Replacement Sensor For:
IT Gambert M-15 PSR-11-917-J
Maxtec MAX 13/ R115P10
Maxtec MAX-7 / R109P09
MSA 406931
Sensor TecST-11
Sensoronics SS-11A
Stephan Christina 110760009
Taema (France) YR010100
Teledyne AX 300 R17 (C-43690)
Vascular Technology 100580
EnviteC 0OM-102-1
Teleflex Medical 5567/V-11
US AIISpecifications of Oxygen Sensor - PSR-11-917-J:
| Measurement Range |
0-100% |
| Accuracy |
+/-1% (Full Scale) |
| Signal Output |
9-13 mV |
| Linearity |
+/-1% Full Scale) |
| Response Time T90 |
13s |
| Temperature Coefficient |
Compensation |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
0 to 25°C |
| Shelf Life |
6 months |
| Humidity Non-condensing (Expected Life) |
0-99%RH |
| Expected Life |
60 months |
| Shelf Life |
18 months |
| Electrical Connector |
3.5mm Phono Jack Connector |
