Product Introduction

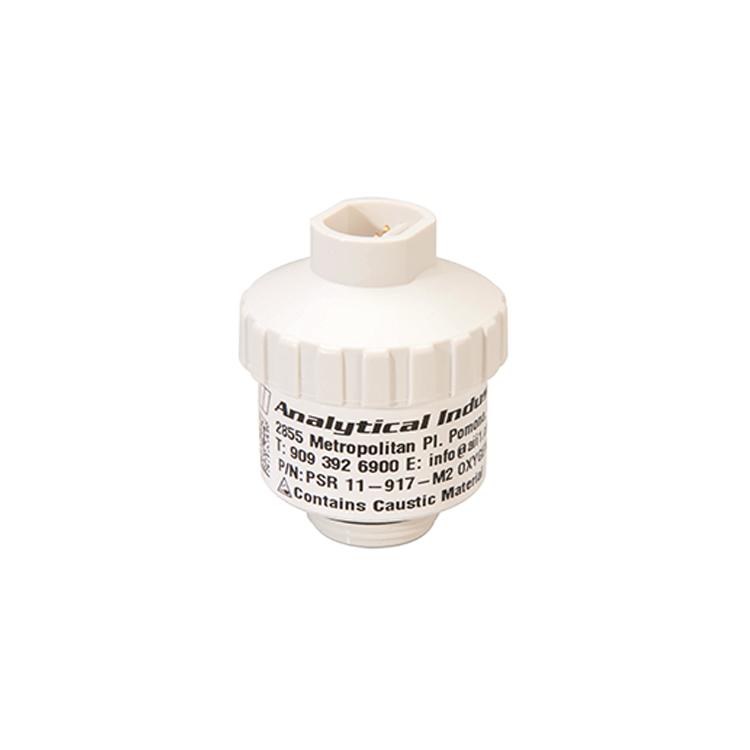

US AIIOxygen Sensor - PSR-11-917-M2 Description:
Made in the USA and medically certified, the electrochemical galvanic oxygen sensor PSR-11-917-M2 offers excellent accuracy and stability, and is individually tested before shipment. Brand new sensors are obtained directly from production, with extended service life and long warranty. Compliant with FDA, MDSAP, ISO13485, ISO9001
US AIIKey Features of Oxygen Sensor - PSR-11-917-M2:
Oxygen Sensor Compatibility:
Puritan Bennett 760 Ventilator
Puritan Bennett 840 Ventilator
Replacement Sensor For:
EnviteC OOM202
IT Gambert M-04
Maxtec Max-16/ R114P70
Maxtec MAX- 16HT / R114P73
MSA 716044 (PB 840)
US AIIParameters of Oxygen Sensor - PSR-11-917-M2:
| Measurement Range |
0-100% |
| Accuracy |
+/-2% (Full Scale) |
| Signal Output |
13-16 mV |
| Linearity |
+/-2% Full Scale) |
| Response Time T90 |
13 s |
| Temperature Coefficient |
Compensation |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
0 to 25°C |
| Shelf Life |
6 months |
| Humidity Non-condensing (Expected Life) |
0-99%RH |
| Expected Life |
60 months |
| Shelf Life |
18 months |
| Electrical Connector |
3-pin male Molex, mating connector Molex 2201-2037 |
