Product Introduction

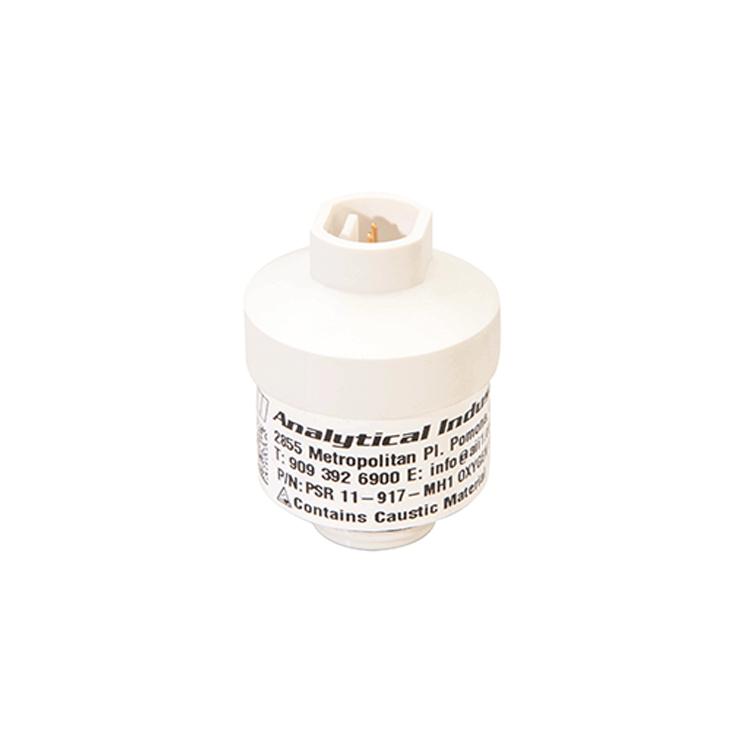

US AIIOxygen Sensor - PSR-11-917-MH1 Description:
Made in the USA and medically certified, the electrochemical galvanic oxygen sensor GPR-11-917-MH1 offers excellent accuracy and stability, and is individually tested before shipment. New sensors are sourced directly from production, with extended service life and long warranty. Compliant with FDA, MDSAP, ISO13485, ISO9001
US AIIKey Features of Oxygen Sensor - PSR-11-917-MH1:
Oxygen Sensor Compatibility:
Atom V-2100G Incubator
Atom V-2200 Incubator
Drager C2000 Incubator
Drager/Airshield Isolette Incubator with built-in monitor
Replacement Sensor For:
IT Gambert M-12
Sensoronics SS-12AIR
US AIISpecifications of Oxygen Sensor - PSR-11-917-MH1:
| Measurement Range |
0-100% |
| Accuracy |
+/-2% (Full Scale) |
| Signal Output |
10-13 mV |
| Linearity |
+/-2% Full Scale |
| Response Time T90 |
4 s |
| Temperature Coefficient |
Compensation |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
0 to 25°C |
| Shelf Life |
6 months |
| Humidity Non-condensing (Expected Life) |
0-99%RH |
| Expected Life |
60 months |
| Shelf Life |
14 months |
| Electrical Connector |
3-pin male Molex, mating connector Molex 2201-2037 |
