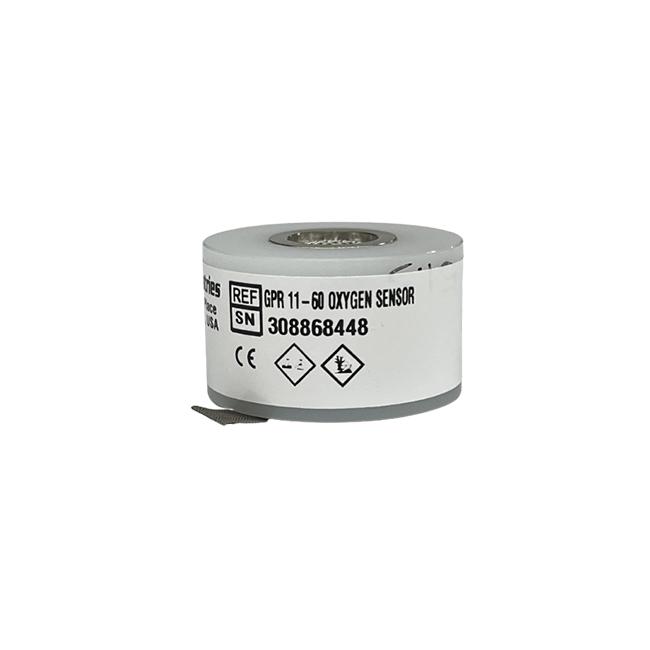

US AII Long-Life Electrochemical Oxygen Sensor O2 SensorGPR-11-60 Description:
GPR-11-60 is a reliable electrochemical oxygen sensor designed for accurate detection of oxygen content in the range of 0% to 100%. The sensor is designed with simplicity and long-term stability in mind, featuring a compact PCB mounting structure for easy installation and replacement. Its sealed structure ensures stable operation, and it also has excellent signal-to-noise ratio for precise measurement data. With its long service life and stable performance, this sensor is ideal for OEM manufacturers requiring oxygen detection in industrial or analytical fields.
US AII Long-Life Electrochemical Oxygen Sensor O2 SensorGPR-11-60 Features:
Measurement range: 0–100% oxygen concentration
Signal output (in air): 35–55µA
Sensitivity:1.67-2.63 µA/% O2
Response time (T90): 9 seconds
Operating humidity: non-condensing, 0–99% RH

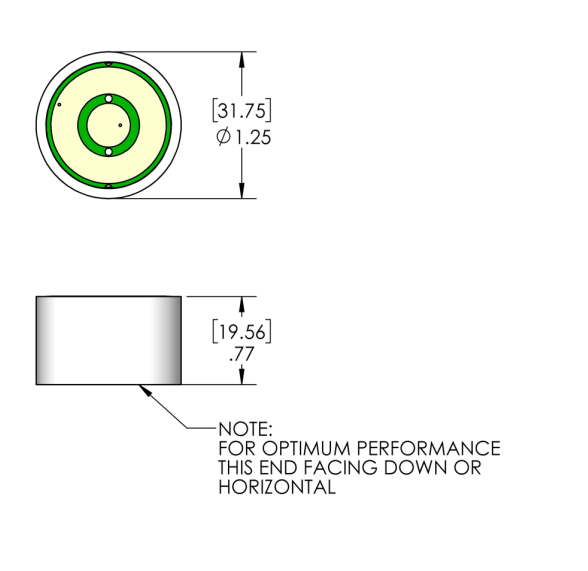

Electrical connection: dual-ring PCB structure
US AII Long-Life Electrochemical Oxygen Sensor O2 SensorGPR-11-60 Parameters:
| Oxygen sensor model |
GPR-11-60 |
| Measurement range |
0-100%O2 |
| Signal output(1) |
35-60 µA |
| Response time90% |
9 seconds |
| Full-scale accuracy (2） |
+ 1% |
| Accuracy within operating range (3） |
+ 5% |
| Signal drift percentage per month (2 |
< 1% |
| Linearity(2) |
+ 1% |
| Humidity non-condensing |
0-99% RH |
| Temperature coefficient |
2.54% |
| Operating temperature |
0-45° C |
| Operating pressure |
Constant 5-30 PSIG |
| Flow rate |
1-10 LPM |
| Expected life(1) |
60 Months |
| Storage(4) |
0-40° C |
| Warranty(5) |
12 Months |
| Electrical connection |
PCB dual-ring structure |
| Packaging |
Packed in polyethylene bag 3" x 3" x 1.5" paper box |
