Product Introduction

American AII Long-Life Electrochemical Oxygen Sensor O2 SensorXLT-11-75-KE25 Applications:

0-100% range, used in anesthesia machines, oxygen analyzers, ventilators, etc.

American AII Long-Life Electrochemical Oxygen Sensor O2 SensorXLT-11-75-KE25：

Replacement Sensor For:KE-25

American AII Long-Life Electrochemical Oxygen Sensor O2 SensorXLT-11-75-KE25 Parameters:

Measurement Range	0-100% O2
Accuracy	+ 5%
Signal Output	10 - 15.5 mV
Full Scale	+ 1%
Response TimeT90	13s
Drift%	< 1%
Linearity	+ 1%
Temperature Coefficient	Compensation
Operating Temperature	0 to 40°C
Storage Temperature	5 to 25°C
Recommended Storage	6 months
Operating Pressure	Constant 5-30 PSIG
Humidity Non-condensing (Expected Life)	10-99%RH
Expected Life	36months
Flow Rate	1-10 LPM
Warranty Period	12months

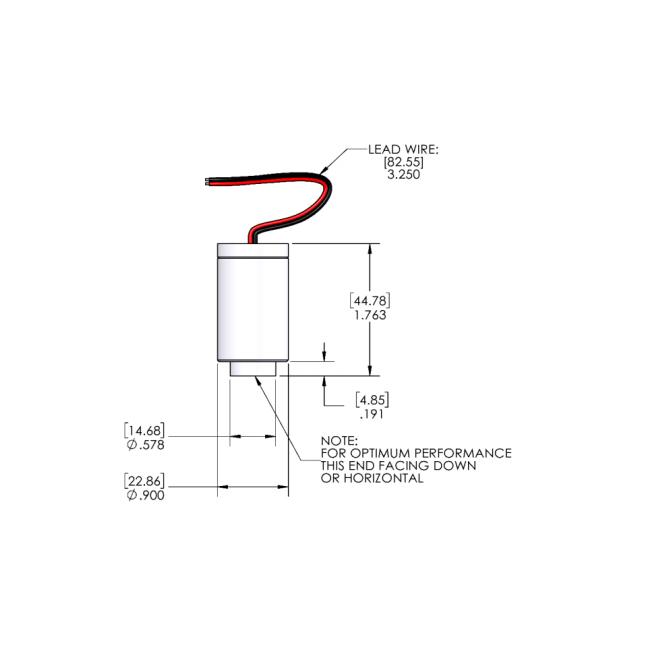

Electrical Connector	3.250" Wires
Packaging	Polyetylene bag in 3" x 3" x 1.5" paper box

(1) In air @ 25° C and 1 atm. Expected life varies inversely with changes in O2 concentration, temperature, pressure.

(2) Under constant conditions. Calibrate as near sample conditions as possible. Calibrate with 95-100% oxygen for measurements > 40% oxygen.

(3) Once the signal output stabilizes following a step change in temperature.

(4) Recommended 5-35° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.

(5) Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in material and workmanship for the period specified above proved the sensor is properly installed and operated. Analytical Industries Inc. shall not be liable for buyer's negligence,

misapplication, alteration or abuse. The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective sensor.
