Product Introduction

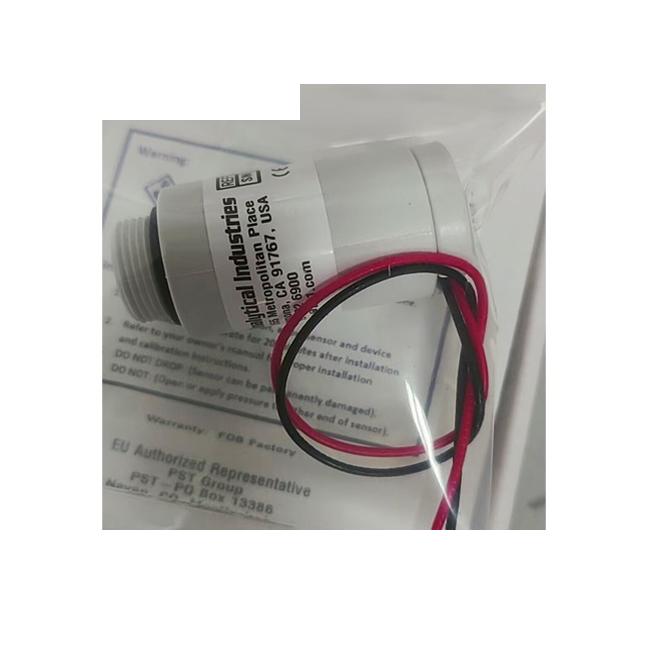

American AII Long-Life Electrochemical Oxygen Sensor O2 Sensor XLT-11-75-KEF3Description:

Measurement range of 0-100%, applicable to anesthesia machines, oxygen analyzers, ventilators and other equipment.

Replaceable:: KE-25F3 sensor

American AII Long-Life Electrochemical Oxygen Sensor O2 SensorXLT-11-75-KEF3 Parameters:

Measurement Range	0-100% O2
Accuracy within Operating Range	+ 5%
Signal Output	10 - 15.5 mV
Accuracy at Full Scale	+ 1%
Response Time	13s
Signal Drift Rate	< 1%
Linearity	+ 1%
Temperature Coefficient	Compensated
Operating Temperature	0 to 40°C
Storage Temperature	5 to 25°C
Recommended Storage Time	6 months
Operating Pressure	Constant 5-30 PSIG
Humidity Requirements	10-99%RH
Expected Service Life	36 months
Flow Range	1-10 LPM
Warranty Period	12 months
Electrical Connection Method	3.250" Wires
Packaging Method	Polyetylene bag in 3" x 3" x 1.5" paper box

(1) In air @ 25° C and 1 atm. Expected life varies inversely with changes in O2 concentration, temperature, pressure.

(2) Under constant conditions. Calibrate as near sample conditions as possible. Calibrate with 95-100% oxygen for measurements > 40% oxygen.

(3) Once the signal output stabilizes following a step change in temperature.

(4) Recommended 5-35° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.

(5) Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in material and workmanship for the period specified above proved the sensor is properly installed and operated. Analytical Industries Inc. shall not be liable for buyer's negligence,

misapplication, alteration or abuse. The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective sensor.
