Product Introduction

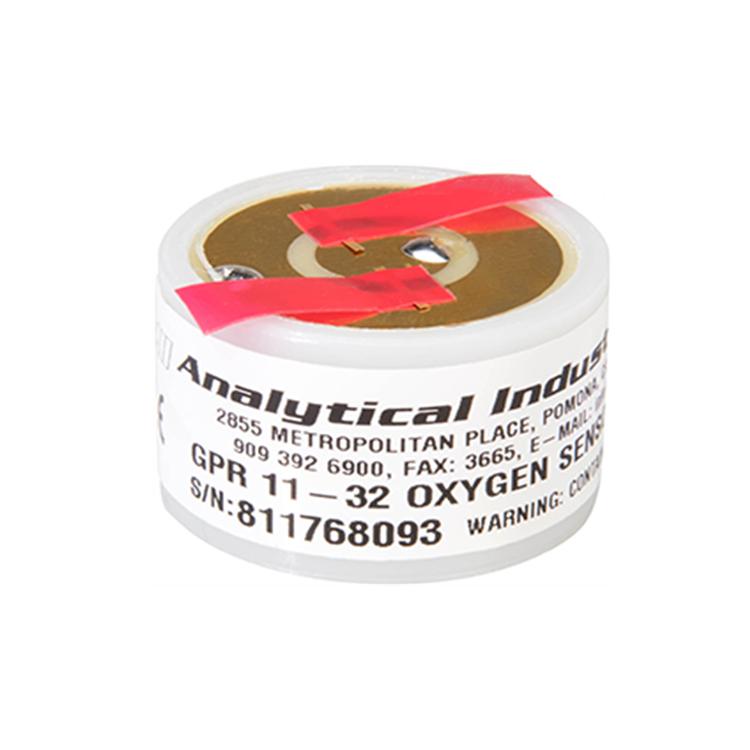

US AII Oxygen Sensor O2 SensorGPR-11-32 Description:
GPR-11-32The oxygen sensor is an electrochemical oxygen sensor that provides excellent stability and accuracy under demanding application conditions. All sensors undergo extensive stability testing, output in air, 30-inch water column pressure test, and stability in 100% oxygen. The wide range of oxygen sensors provided by Analytical Industries is 'Made in the USA'.
This sensor is specifically designed for percentage oxygen analyzers provided by the instrument company.
This sensor can be connected with the following:
GPR-11-32RT phone jack
GPR-11-32-4 4-pin connection
GPR-11-60-4 4-pin connection, 60-month air life
US AII Oxygen Sensor O2 SensorGPR-11-32 Parameters:
| Measurement Range |
0-100% |
| Accuracy |
+/-2% of Full Scale |
| Signal Output |
35-55ua |
| Linearity |
+/-2% of Full Scale |
| Response T90 |
7 sec |
| Operating Temperature |
0-45°C |
| Storage Temperature |
0-25°C |
| Temperature Coefficient |
Without Compensation |
| Shelf Life |
6 months |
| Humidity (Non-condensing) |
0-99% RH |
| Service Life |
32 months |
| Warranty |
12 months |
| Electrical Connector |
2-ring PCB |
