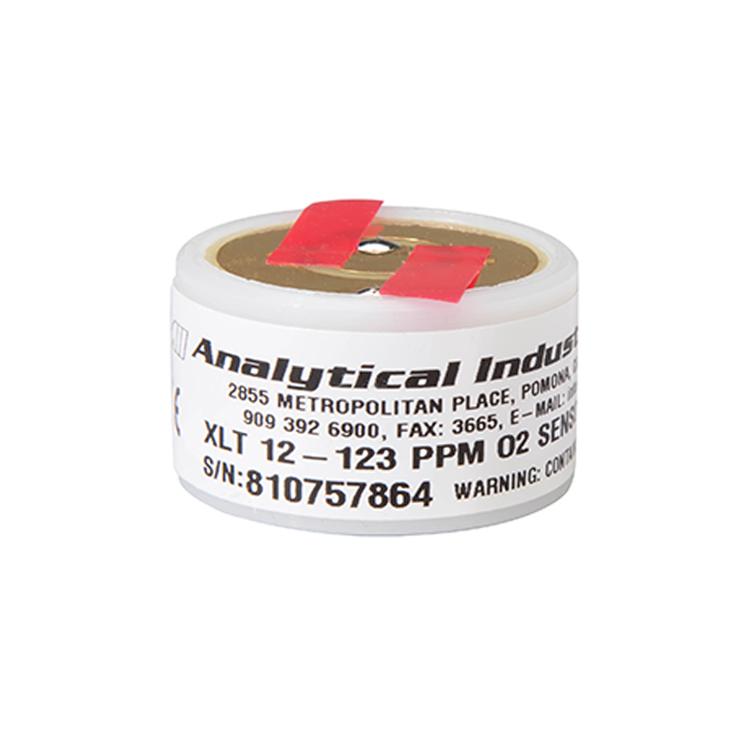

US AII Replacement A2C OX2 T2 Oxygen SensorXLT-12-123 Description:
XLT-12-123, replacing A2C, OX2 and T2. This PPM oxygen sensor galvanic oxygen sensor has good stability and accuracy under strict applications, all sensors are greatly affected.
Extensive stability testing, output in air, 30" water column pressure test and stability in 100% oxygen.
Widest oxygen range. Sensors provided by Analytical Industries, Inc. are "Made in USA" and recommended for use in gas mixtures containing 0.5% CO2.
OEM Equipment:
AMI T2 Sensor
GE Sensing Panametrics X-2 Sensor
Teledyne A-2, A-2C Sensor
US AII Replacement A2C OX2 T2 Oxygen SensorXLT-12-123 Parameters:
| Measurement Range |
0-25% |
| Accuracy |
±2% FS |
| Signal Output |
295 - 625uA |
| Linearity |
±2% FS |
| Response Time T90 |
7 seconds |
| Operating Temperature |
0~ 45℃ |
| Recommended Storage Temperature |
0~ 25℃ |
| Temperature Coefficient |
Compensation |
| Shelf Life |
6 months |
| Relative Humidity (Non-condensing) |
0-99% RH |
| Expected Life |
18-24 months |
| Warranty |
12 months |
| Electrical Connection |
2 Ring Gold Discs |
