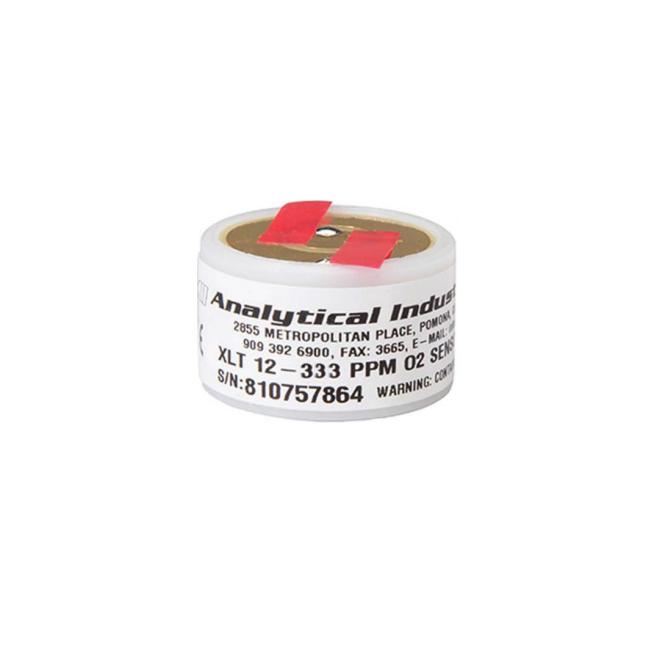

American AII Electrochemical PPM Concentration Measurement Trace Oxygen O2 Sensor XLT-12-333

American AII Electrochemical PPM Concentration Measurement Trace Oxygen O2 Sensor - XLT-12-333

Measurement Range - 0-10,000 ppm O2
Signal Output (10,000ppm) - 28-45µA
Air Signal Output - 590-950 µA
Flow Rate - 0-2.5 LPM
Response Time (T90) - 3 seconds
Electrical Connection - PCB 2 ring connectors

Model: XLT-12-333

Inquire

shareShare

Product Introduction

American AII Electrochemical PPM Concentration Measurement Trace Oxygen O2 Sensor XLT-12-333 Description:

This electrochemical primary battery type oxygen sensor is specifically designed for reliable measurement of low ppm concentrations of oxygen in carbon dioxide-rich environments. It has zero cross-sensitivity to carbon dioxide, ensuring accurate results even in conditions where traditional sensors may fail. Based on proven primary battery technology, this sensor offers higher sensitivity, long-term stability, and excellent signal-to-noise ratio, with a service life of up to 24 months. It is designed for trace oxygen analysis in demanding industrial applications, providing reliable performance for process control, gas concentration monitoring, and safety-critical systems.

American AII Electrochemical PPM Concentration Measurement Trace Oxygen O2 SensorXLT-12-333Features:

Measurement Range -0-10,000 ppm O2
Signal Output (10,000ppm) -28-45µA
Air Signal Output -590-950 µA
Flow Rate -0-2.5 LPM
Response Time (T90) - 3 seconds
Electrical Connection - PCB 2 ring connectors

OEM Equipment:

Southland Sensing TO2-233
Replacement Oxygen Sensors:

Analytical Industries - GPR-1600
Analytical Industries - GPR-1100 and GPR 1200
Analytical Industries - GPR-18
Analytical Industries - GPR-1800

Analytical Industries - GPR-150

American AII Electrochemical PPM Concentration Measurement Trace Oxygen O2 SensorXLT-12-333 Parameters:

Measurement Range	0-10,000 ppm O2
Signal Output (1)	28-45 µA
Signal Output (Gaseous)	590-950 µA
Sensitivity	2.8-4.5 nA/ppm O2
Response Time: 90%	9 Seconds
Full Scale Accuracy (2)	+ 1% F.S.
Accuracy Error within Operating Range (3)	+ 5%F.S.
Signal Drift per Month (2)	< 1%
Linearity (2)	+ 1%F.S.
Humidity (Non-condensing)	0-99% RH
Temperature Coefficient	2.54%/°C
Operating Temperature	0-45° C
Operating Pressure Range	0.5-2bar absolute
Pressure Dependence	Partial Pressure
Flow Rate	0-2.5 LPM
Expected Life (1)	18Months
Storage Time	< 3 months
Recommended Storage Temperature(4)	0-40°C
Warranty(5）	12 Months
Electrical Connection	PCB 2 Ring

Note: Use sensor immediately after removing from the packaging. After removing, do not leave the sensor

in air for an extended period of time. Failure to do so may have a negative impact on its performance and life.

1. At 25° C, <1000 ppm, and 1 bar. Expected life decreases with increases in O2 concentration, temperature, and pressure.

2. Under constant conditions. Calibrate as near sample conditions as possible. Sensing surface should point downward.

3. Once the signal output stabilizes following a step change in temperature.

4. Recommended 0-40° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.

5. Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in

material and workmanship for the period specified above provided the sensor is properly installed and operated.

Analytical Industries Inc. shall not be liable for buyer’s negligence, misapplication, alteration, or abuse.

The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective

sensor.
