Product Introduction

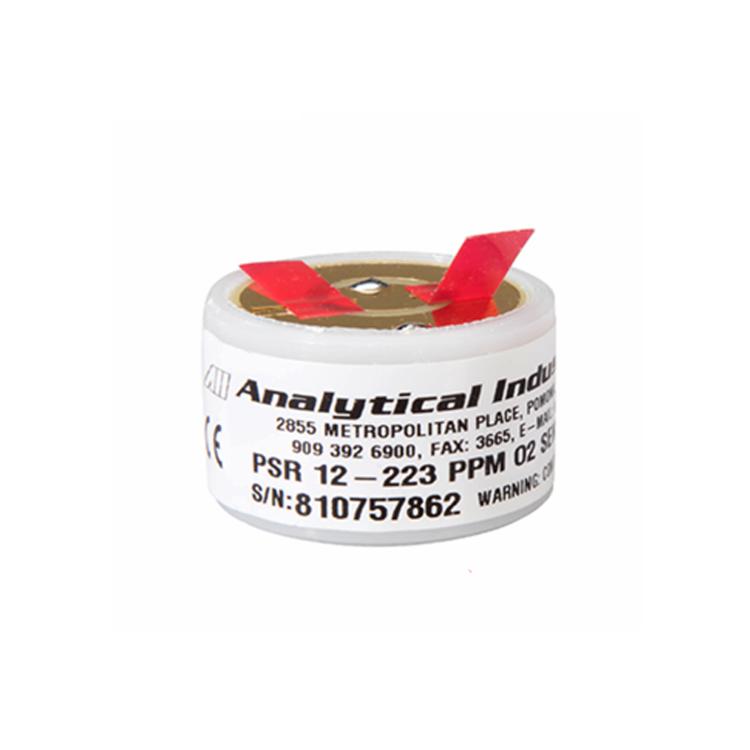

US AII Oxygen Sensor Trace Oxygen Fuel Cell PSR-12-223 Description:
AII oxygen sensors, trace oxygen fuel cells, GPR-12-333, PSR-12-223. This amperometric oxygen sensor provides excellent stability and accuracy in demanding applications.
US AII Oxygen Sensor Trace Oxygen Fuel Cell PSR-12-223Applications:
Air separation units
Nitrogen generation
Chemical & petrochemical processes
Steelmaking
Oxygen content testing in various fields such as portable oxygen detectors
US AII Oxygen Sensor Trace Oxygen Fuel Cell PSR-12-223 Parameters:
| Measurement Range |
0-10000 ppm O2
|
|
FS Accuracy
|
±1%
|
| Sensitivity |
1.4-3.0 nA /ppm O2
|
|
Drift (% per month)
|
< 1 % |
| Signal Output |
14-30µA (10,000 ppm)
295-625 µA (in air)
|
| Linearity |
±1% FS |
| Response Time T90 |
3 seconds |
| Operating Temperature |
0~ 45℃ |
| Recommended Storage Temperature |
0~ 40℃ |
| Temperature Coefficient |
2.54%/°C
|
|
Operating Pressure Range
|
5-30 PSIG (344.738 - 2068.428 mbar)
|
|
Pressure Dependence
|
Partial Pressure |
|
Flow Rate
|
0 -2.5 LPM
|
| Shelf Life |
< 3 months
|
| Relative Humidity (non-condensing) |
0-99% RH |
| Expected Life |
24 months
|
| Warranty |
12 months |
| Electrical Connection |
2-pin PCB
|
| Compatible Oxygen Analyzers |
AII： AMI：1000RS，2001RS/RSP/RSM，2010BR，watchdog， GE Sensing：Panametrics OX-1， Teledyne：300T，310，311/D/XL，3110，315， 316A/B/RA/RB，317 RA/RB，318/318R， 3000TA/TA-XL/TB，3010TA/TB，3020T，3160，3190，insta Trans，OT-3，Turbo 2/2P |
| Replacement Sensors |
AMI T1 |
