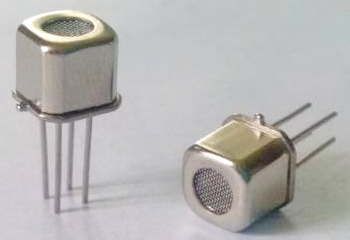

Air Quality Sensor MP501 Product Description
-
The MP501 gas sensor is an air quality gas sensor. It uses a multi-layer thick film manufacturing process, with a heater and a metal oxide semiconductor gas-sensitive layer formed on both sides of a miniature Al2O3 ceramic substrate, connected by electrode leads, and packaged in a TO-5 metal housing. When the target gas is present in the ambient air, the sensor's conductivity changes; the higher the concentration of the gas, the higher the sensor's conductivity. A simple circuit can convert this change in conductivity into an output signal corresponding to the gas concentration.
-
Air Quality Sensor MP501Sensor Features
-
High sensitivity to alcohol and smoke;
Fast response and recovery;
Miniature, low power consumption;
Simple detection circuit;
Good stability and long lifespan.
-
Air Quality Sensor MP501Main applications
-
Used for detecting harmful gases in home environments and offices, automatic exhaust devices, air purifiers, etc.
-
Air Quality Sensor MP501Technical Specifications
| Product Model |
MP501 |
||
| Product Type |
Planar semiconductor gas-sensitive element |
||
| Standard Package |
TO-5 |
||
| Detection gas |
Alcohol, smoke |
||
| Detection Concentration |
10-1000ppm(Alcohol) |
||
| Standard Circuit Conditions |
Loop Voltage |
Vc |
≤24V DC |
| Heating Voltage |
VH |
5.0V±0.2V ACorDC |
|
| Load Resistance |
RL |
Adjustable |
|
| Gas-sensitive element characteristics under standard test conditions |
Heating Resistance |
RH |
85Ω±10Ω(room temperature) |
| Heating Power Consumption |
PH |
≤300mW |
|
| Sensitive body Electricity Resistance |
Rs |
1KΩ-30KΩ(in 50ppm Alcohol) |
|
| Sensitivity |
S |
Rs(in air)/Rs(50ppmAlcohol)≥5 |
|
| Concentration Slope |
α |
≤0.6(R50ppm/R30ppmAlcohol) |
|
| Standard Test Conditions |
Temperature, Humidity |
20℃±2℃；65%±5%RH |
|
| Standard Test Circuit |
Vc:5.0V±0.1V； VH: 5.0V±0.1V |
||
| Preheating Time |
Not less than48Hours |
||
