Product introduction

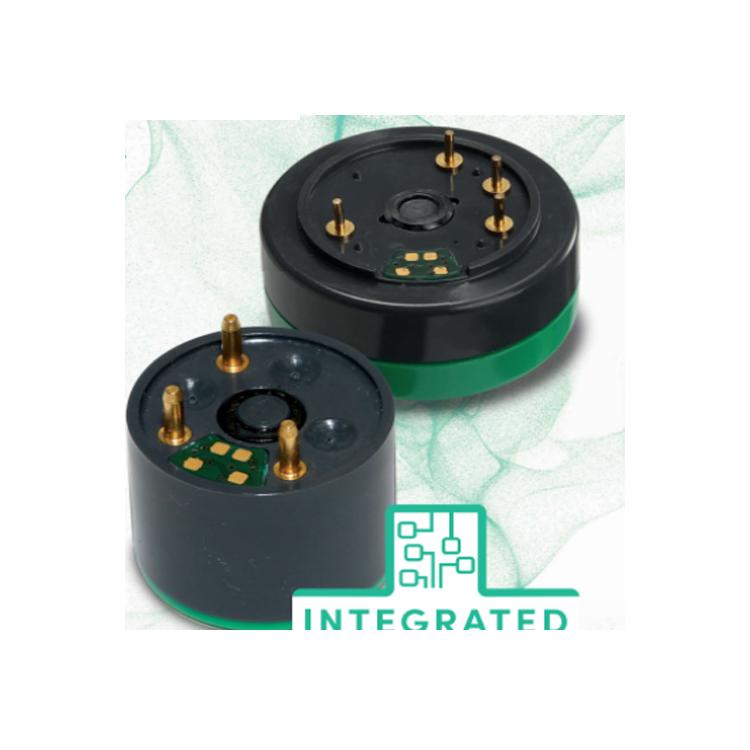

UK Alphasense A+ and B+ series smart sensor description:
The A+ and B+ sensors are built on the field-proven and highly regarded A series and B series. All A+ and B+ sensors are backward compatible, with the same dimensions, performance characteristics, and outputs as the A and B series. Based on the popular A series and B series platforms, A+ and B+ feature integrated smart technology, providing a wide range of out-of-the-box benefits. A+ and B+ come pre-populated with over 30 sensor-specific parameters and over 8KB of free memory, with more than 15,000 memory slots, setting a new standard for plug-and-play sensors.
Key benefits of A+ and B+ integrated smart technology include: pre-calibrated sensors, traceability/path to market, maintenance, performance, compliance, interchangeability. This two-layer sensor design enables instrument manufacturers to standardize electronic hardware and identify instrument functionality based on sensor selection, offering many possibilities to streamline production, improve performance, and enhance end-user experience.
UK Alphasense A+ and B+ series smart sensorsApplications:
Air quality gas monitoring, mobile platform gas detection
A+ and B+ series smart sensor datasheet (with integrated smart technology):
| Interface |
|
| Communication bus |
Compatible with 400 kHz I²C protocol |
| Maximum bus speed |
Up to 1MHz |
| Input logic levels |
High (recessive) < 2.3 V | Low (dominant) < 0.2 V |
| Maximum input signal |
3.6V |
| Power supply characteristics |
|
| Supply voltage range |
1.7 V~ 3.6 V |
| Supply current - standby |
< 5 μA |
| Supply current - operating |
< 0.15 mA (temperature reading only) < 2.15 mA (temperature reading + memory read/write) |
| ESD protection |
4kV (Human Body Model) - enhanced ESD/latch-up protection |
| Performance |
|
| IST board temperature range |
-40°C to +85°C - applies only to the IST board, not covering the temperature range of the specific sensor it is mounted on. |
| Temperature sensor accuracy |
±1°C (-0°C to +70°C) |
| Memory data retention |
> 200 years |
| Memory write endurance: |
> 4,000,000 |
