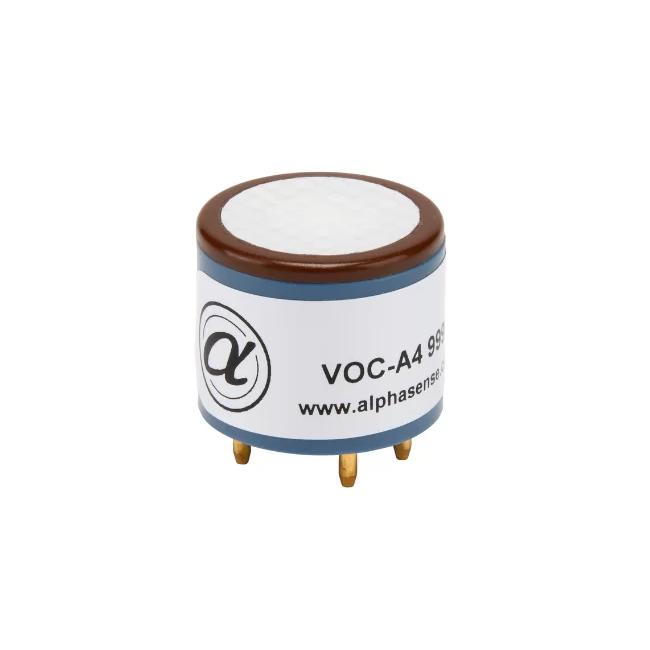

UK Alphasense Air Quality Sensor VOC SensorVOC-A4 Description:
VOC-A4Can detect both VOC gas and CO gas.
Using VOC-A4 and CO-A4 sensors together allows estimation of VOC concentration without bias.
Alphasense VOC electrochemical sensors VOC-A4 and VOC-B4 are the perfect partners for our amperometric four-electrode air quality sensors. In ambient air quality applications, VOC-A4 and VOC-B4 should be used in conjunction with one of our A-series (CO-A4) or B-series (CO-B4) carbon monoxide sensors. Although we recommend no bias voltage for these sensors in air quality applications, the bias of both VOC-A4 and VOC-B4 can be changed to 0V, 0.1V, 0.2V, or 0.3V, allowing selection of different gas detection.
UK Alphasense Air Quality Sensor VOC SensorVOC-A4 Technical parameters for CO detection:
| Response time |
< 30s |
| Dimensions |
Φ20.2×16.5 |
| CO detection range |
190ppm |
| Overload |
1000ppm |
| Sensitivity |
230~410nA/ppm |
UK Alphasense Air Quality Sensor VOC SensorVOC-A4 Technical parameters for ethanol (C2H6O) detection:
| Response time |
< 30s |
| Dimensions |
Φ20.2×16.5 |
| Ethanol detection range |
2ppm |
| Overload |
5ppm |
| Sensitivity |
200~400nA/ppm |

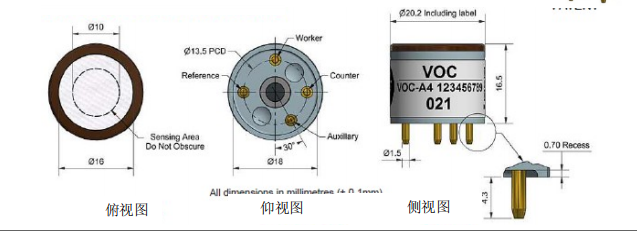

UK Alphasense Air Quality Sensor VOC Sensor VOC-A4 Dimension Drawing
