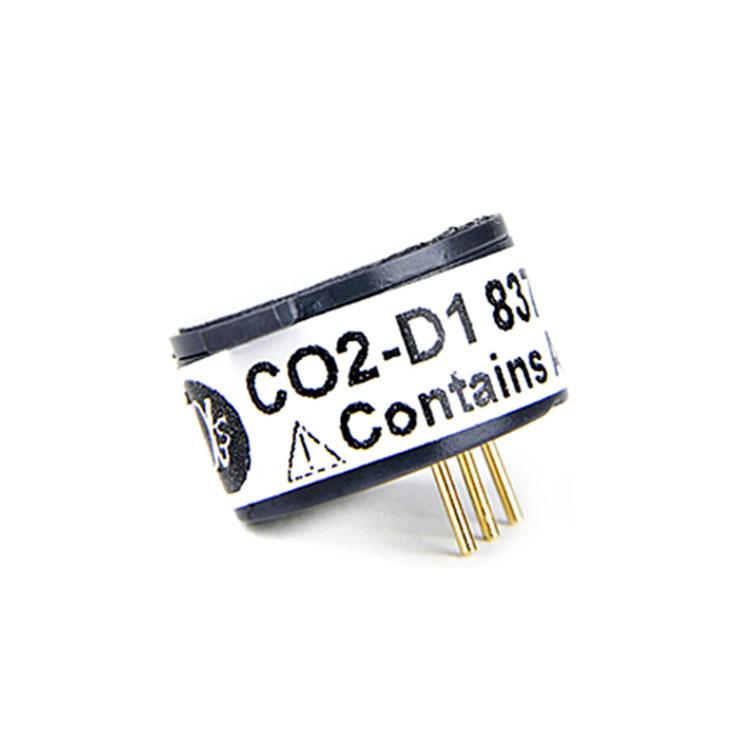

UK Alphasense carbon dioxide gas sensor (CO2 gas sensor) - CO2-D1
1) Detection range: 0.2% ~ 95%
2) Output signal: logarithmic curve, mV level
3) Response time: 2-4 minutes
4) Operating temperature: 10-35 degrees
5) Operates at room temperature, no power supply required, small size, low cost. Can be applied in combustion analysis, safety, industrial process control and other fields.
Product introduction
1. Carbon dioxide gas sensor CO2-D1 product description:
Solid electrolyte carbon dioxide gas sensor CO2-D1, operates at room temperature, no power supply required, small size, low cost. Can be applied in combustion analysis, safety, industrial process control and other fields.
2. Carbon dioxide gas sensor CO2-D1 features
1) Detection range: 0.2% ~ 95%
2) Output signal: logarithmic curve, mV level
3) Response time: 2-4 minutes
4) Operating temperature: 10-35 degrees
5) Operates at room temperature, no power supply required, small size, low cost. Can be applied in combustion analysis, safety, industrial process control and other fields.
3. Carbon dioxide gas sensor CO2-D1 main parameters:
Measurement range: 0.2% ~ 95%
Sensitivity: -6 ~ 10mV/(0.5%-5%CO2)
Response time: <2-4min
Resolution: 100ppm
Dimensions: Φ14.5*8.3
Service life: 2 years
Storage period: 6 months
Operating temperature: -10 ~ 35℃
Operating humidity: 15 ~ 95%RH
