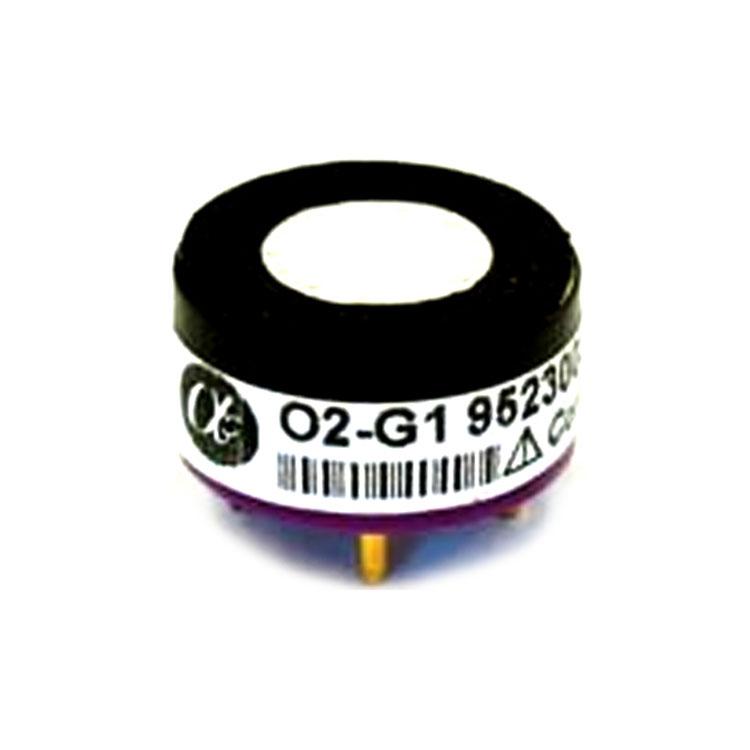

UK Alphasense Electrochemical Oxygen Sensor (Small Size O2 Sensor) - O2-G1
(1) Oxygen sensor measurement range (%): 0-30
(2) Operating life: >1 year
(3) Dimensions (mm): Φ20.3×10.2mm
(4) Output: 65 - 85 μA @ 22°C, 20.9% O2
(5) Response time t90 (seconds): <18S
(6) Weight: < 7g
(7) Temperature range: -30 - 55℃
(8) Pressure range: 80 - 120Kpa
(9) Humidity range: 5 - 95%RH
(10) Storage time: 6 months. Load resistance: 47 - 100 ohms
Product Introduction
1. Electrochemical Oxygen Sensor (Small Size O2 Sensor) Product Description:
Electrochemical oxygen sensorO2-G1 is mainly used in oxygen alarms and atmosphere analyzers.
2. Electrochemical Oxygen Sensor (Small Size O2 Sensor) Features:
(1) Oxygen sensor measurement range (%): 0-30
(2) Operating life: >1 year
(3) Dimensions (mm): Φ20.3×10.2mm
(4) Output: 65 - 85 μA @ 22°C, 20.9% O2
(5) Response time t90 (seconds): <18S
(6) Weight: < 7g
(7) Temperature range: -30 - 55℃
(8) Pressure range: 80 - 120Kpa
(9) Humidity range: 5 - 95%RH
(10) Storage time: 6 months
(11) Load resistance: 47 - 100 ohms
